Product Overview

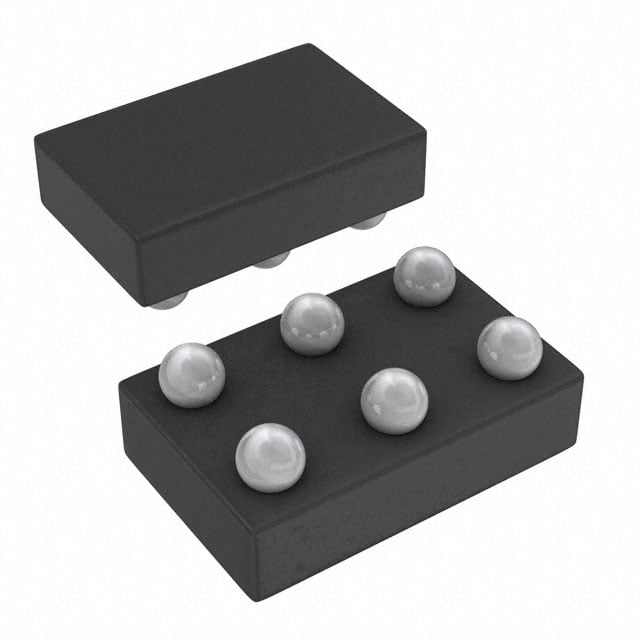

The SN74AUP1G97YZPR from Texas Instruments is a single configurable multiple-function gate designed for ultra-low-power applications. It operates over a wide supply voltage range of 0.8 V to 3.6 V, making it ideal for battery-powered and portable devices. The device is available in a compact 6-DSBGA package, offering space-saving benefits for dense PCB layouts. It supports multiple logic functions (AND, OR, NAND, NOR, XOR, XNOR, inverter, buffer) configurable via input pins, providing design flexibility.
Detailed Technical Specifications
| Parameter |
Value |
| Supply Voltage (VCC) |
0.8 V to 3.6 V |
| Input Voltage (VI) |
0 V to 3.6 V |
| Output Voltage (VO) |
0 V to VCC |
| High-Level Input Voltage (VIH) |
0.65 × VCC (min) |
| Low-Level Input Voltage (VIL) |
0.35 × VCC (max) |
| High-Level Output Current (IOH) |
-4 mA (at 3.0 V) |
| Low-Level Output Current (IOL) |
4 mA (at 3.0 V) |
| Propagation Delay (tpd) |
4.3 ns (typ at 3.3 V) |
| Power Dissipation (PD) |
500 mW (max) |
| Operating Temperature |
-40°C to +85°C |
| Package |
6-DSBGA (1.0 mm × 1.0 mm) |
Key Features
- Ultra-low static power consumption (ICC = 0.9 µA max)
- Wide operating voltage range: 0.8 V to 3.6 V
- Configurable logic functions: AND, OR, NAND, NOR, XOR, XNOR, inverter, buffer
- High noise immunity (VOH = 0.9 × VCC at 3.0 V)
- Low propagation delay: 4.3 ns typical at 3.3 V
- Small package: 6-DSBGA (1.0 mm × 1.0 mm)
- ESD protection exceeds JESD 22 (2000-V HBM, 1000-V CDM)
Target Applications
- 5G base station control logic: Used for signal conditioning in remote radio units (RRUs) and baseband units (BBUs).
- Automotive dashboard: Logic level translation and signal gating in infotainment systems and instrument clusters.
- Portable medical devices: Low-power logic for patient monitoring systems and diagnostic equipment.
- IoT sensors: Configurable logic for sensor interface and data aggregation in smart home devices.
- Wearable electronics: Ultra-low power consumption extends battery life in fitness trackers and smartwatches.
