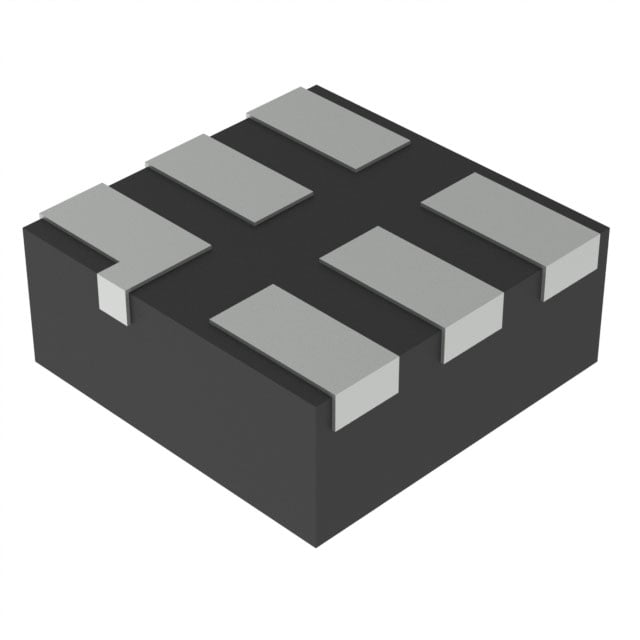

SN74AUP1T34DSFR TI Voltage Level Translator | 6-SON(1x1) | 0.9V-3.6V, 500Mbps

Product Overview

The SN74AUP1T34DSFR is a single-bit, unidirectional voltage-level translator from Texas Instruments, designed to interface between different voltage domains in low-power applications. It operates over a wide supply voltage range from 0.9V to 3.6V on both the A and B ports, making it suitable for multi-voltage systems. The device features a high-speed data rate of up to 500 Mbps and is available in a compact 6-pin SON package (1mm x 1mm), ideal for space-constrained designs.

Detailed Technical Specifications

Key Features

• Unidirectional voltage-level translation between 0.9V and 3.6V
• High-speed operation up to 500 Mbps
• Ultra-low power consumption with 0.9 µA max quiescent current
• Small footprint: 6-pin SON package (1mm x 1mm)
• ESD protection exceeds 2000V HBM
• Latch-up performance exceeds 100 mA per JESD 78, Class II

Target Applications

• 5G base station control interfaces (e.g., FPGA to low-voltage sensor)
• Automotive dashboard display modules (e.g., MCU to display driver)
• Portable electronics (e.g., smartphone sensor hub)
• Industrial IoT edge nodes (e.g., low-power microcontroller to radio)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN74AUP1T34DSFR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

SN74AUP1T34DSFR 是德州儀器（TI）推出的一款單通道、單向電壓位準轉換器，專為低功耗應用中不同電壓域之間的介面設計。它在 A 和 B 端口上均支援 0.9V 至 3.6V 的寬電源電壓範圍，適用於多電壓系統。該器件支援高達 500 Mbps 的數據速率，並採用緊湊的 6 引腳 SON 封裝（1mm x 1mm），非常適合空間受限的設計。

詳細技術參數

核心特性

• 單向電壓位準轉換，支援 0.9V 至 3.6V
• 高速操作，最高 500 Mbps
• 超低功耗，靜態電流最大僅 0.9 µA
• 小巧封裝：6 引腳 SON (1mm x 1mm)
• ESD 保護超過 2000V HBM
• 閂鎖性能超過 100 mA，符合 JESD 78 Class II 標準

典型應用場景

• 5G 基站控制介面（例如 FPGA 到低電壓感測器）
• 汽車儀表板顯示模組（例如 MCU 到顯示驅動器）
• 可攜式電子設備（例如智慧型手機感測器集線器）
• 工業物聯網邊緣節點（例如低功耗微控制器到無線電模組）

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 SN74AUP1T34DSFR 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
