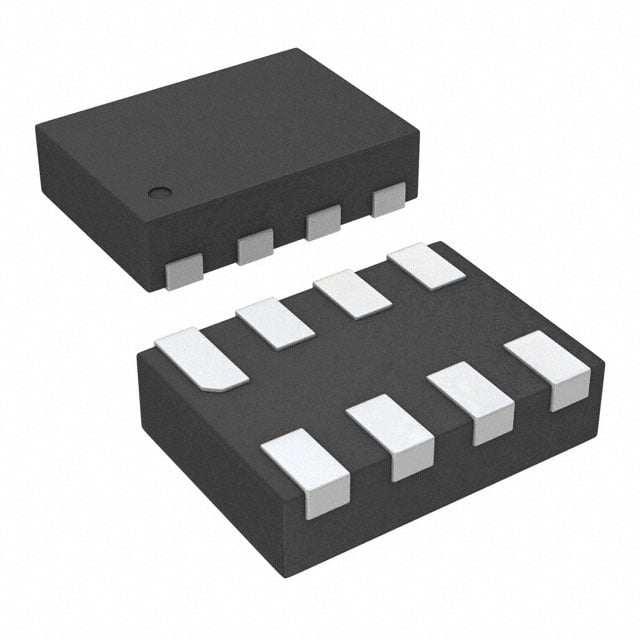

SN74AUP2G00DQER TI Logic Gate | 8-X2SON (1.4×1) | Low Power, 0.8V to 3.6V

Product Overview

The SN74AUP2G00DQER is a dual 2-input positive-NAND gate from Texas Instruments, designed for ultra-low-power applications. It operates over a wide supply voltage range of 0.8V to 3.6V, making it ideal for battery-powered and portable devices. The device is housed in a compact 8-X2SON (1.4mm × 1mm) package, saving board space. It features very low static and dynamic power consumption, with a typical quiescent current of 0.9 µA and propagation delay of 3.8 ns at 3.3V. The inputs accept voltages up to 3.6V, and the device supports partial power-down mode (Ioff) to prevent backflow current when powered down.

Detailed Technical Specifications

Key Features

• Ultra-low power consumption: 0.9 µA typical quiescent current
• Wide supply voltage range: 0.8V to 3.6V
• Low propagation delay: 3.8 ns at 3.3V
• Compact 8-X2SON package (1.4mm × 1mm)
• Partial power-down mode (Ioff) for backflow prevention
• Inputs accept voltages up to 3.6V regardless of VCC
• ESD protection exceeds JESD 22 (2000V HBM, 1000V CDM)
• Latch-up performance exceeds 100 mA per JESD 78

Target Applications

The SN74AUP2G00DQER is suitable for a wide range of low-power and space-constrained applications, including:

• 5G base station control logic
• Automotive dashboard displays and infotainment systems
• Portable medical devices (e.g., glucose monitors)
• Wearable electronics (smartwatches, fitness trackers)
• IoT sensor nodes and edge computing devices
• Battery-powered handheld instruments
• Smart home automation controllers

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN74AUP2G00DQER. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

SN74AUP2G00DQER 是德州儀器（TI）推出的雙路2輸入正與非門，專為超低功耗應用設計。它支持0.8V至3.6V的寬電源電壓範圍，非常適合電池供電和便攜設備。器件採用緊湊的8-X2SON（1.4mm × 1mm）封裝，節省電路板空間。其靜態和動態功耗極低，典型靜態電流為0.9 µA，在3.3V下傳播延遲為3.8 ns。輸入可承受高達3.6V的電壓，並支持部分斷電模式（Ioff），防止斷電時的回流電流。

詳細技術參數

核心特性

• 超低功耗：典型靜態電流 0.9 µA
• 寬電源電壓範圍：0.8V 至 3.6V
• 低傳播延遲：3.3V 時 3.8 ns
• 緊湊的 8-X2SON 封裝（1.4mm × 1mm）
• 部分斷電模式（Ioff）防止回流
• 輸入電壓可達 3.6V，與 VCC 無關
• ESD 保護超過 JESD 22（2000V HBM，1000V CDM）
• 閂鎖效應性能超過 JESD 78 標準的 100 mA

典型應用場景

SN74AUP2G00DQER 適用於多種低功耗和空間受限的應用，包括：

• 5G 基站控制邏輯
• 汽車儀表板顯示和信息娛樂系統
• 便攜醫療設備（如血糖監測儀）
• 可穿戴電子設備（智能手錶、健身追蹤器）
• 物聯網傳感器節點和邊緣計算設備
• 電池供電的手持儀器
• 智能家居自動化控制器

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 SN74AUP2G00DQER 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
