Product Overview

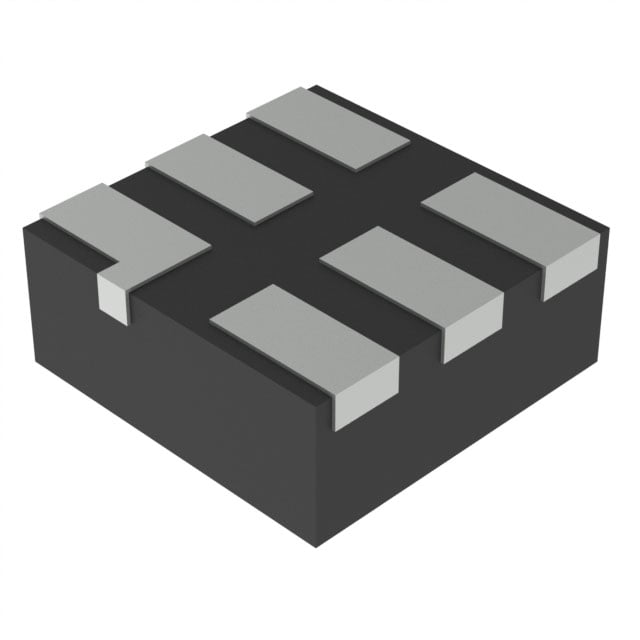

The SN74AUP2G06DSFR is a dual inverter gate with open-drain outputs from Texas Instruments, part of the advanced ultra-low-power (AUP) family. Housed in a compact 6-SON (1x1 mm) package, it is designed for battery-powered and portable applications where power consumption and space are critical. The device operates over a wide supply voltage range of 0.8V to 3.6V, making it compatible with low-voltage logic systems. The open-drain outputs allow for wired-OR configurations and level shifting, providing design flexibility.
Detailed Technical Specifications
| Parameter |
Value |
| Supply Voltage (Vcc) |
0.8V to 3.6V |
| Input Voltage (VI) |
0V to 3.6V |
| Output Voltage (VO) |
0V to 3.6V (open drain) |
| High-Level Input Voltage (VIH) |
0.7 × Vcc (min) |
| Low-Level Input Voltage (VIL) |
0.3 × Vcc (max) |
| High-Level Output Current (IOH) |
N/A (open drain) |
| Low-Level Output Current (IOL) |
4 mA at 3.0V |
| Propagation Delay (tpd) |
3.8 ns typ at 3.3V, 15 pF |
| Input Capacitance (Ci) |
1.5 pF typ |
| Power Dissipation (PD) |
200 mW max |
| Operating Temperature |
-40°C to +85°C |
| Package |
6-SON (1x1 mm) |
Key Features
- Ultra-low static power consumption: ICC < 0.9 µA max
- Low dynamic power consumption: Cpd = 4.5 pF typ at 3.3V
- Open-drain outputs for wired-OR and level translation
- Schmitt-trigger inputs for noise immunity
- Wide supply voltage range: 0.8V to 3.6V
- Overvoltage tolerant inputs up to 3.6V
- Small package: 6-SON (1x1 mm) for space-constrained designs
- Latch-up performance exceeds 100 mA per JESD 78, Class II
- ESD protection exceeds JESD 22: 2000V HBM, 1000V CDM
Target Applications
The SN74AUP2G06DSFR is ideal for a variety of low-power and portable applications, including:
- 5G base station control logic: Used for signal inversion and level shifting in power management and monitoring circuits.
- Smartphone and tablet interfaces: For battery management, sensor interfaces, and GPIO expansion.
- Wearable devices: Such as smartwatches and fitness trackers where low power and small size are critical.
- IoT sensor nodes: For wireless sensor networks requiring ultra-low power consumption.
- Automotive dashboard modules: For display backlight control and indicator drivers.
- Medical devices: Portable monitors and diagnostic equipment.
Global Supply Chain & Wholesale Solutions
At Jasin Chip, we provide professional supply chain and wholesale solutions for
SN74AUP2G06DSFR. Our core advantages include:
-
24/7 Global Customer Support: Professional team providing instant
quotes and technical support worldwide.
-
In-stock Inventory, Same-day Shipping: We maintain localized stock;
orders confirmed before 4 PM are shipped the same day.
-
HK-SZ Synergy, Flexible Settlement: Direct global shipping from
Shenzhen with support for HK bank transfers and multi-currency.
-
Escrow Secured Transactions: We support Escrow.com for secure
transactions, ensuring peace of mind for batch orders.
-
BOM Kitting & Sampling Services: Specialized sourcing for
testing samples and urgent shortage components.
Quality Assurance & Compliance
Jasin Chip guarantees that all delivered products are 100% original factory stock
with full quality assurance and traceability.
-
100% Original & Authentic: All components are guaranteed to
be authentic with strict quality control.
-
RoHS Compliant: All electronic components comply with international
environmental and safety standards.
-
Original Factory Packaging: We maintain original factory packaging
and seals to ensure ESD protection and physical integrity.
