Product Overview

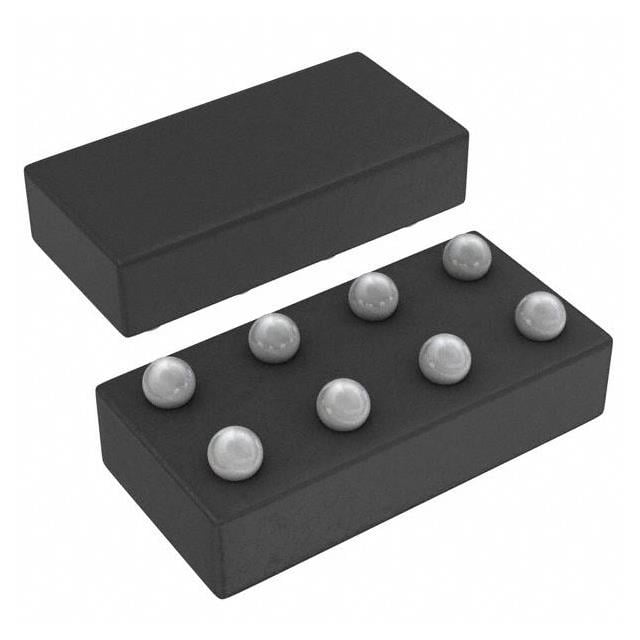

The SN74AUP3G04YFPR is a triple inverter gate from Texas Instruments' advanced ultra-low-power (AUP) family. Housed in a compact 8-DSBGA (0.35mm pitch) package, it operates from 0.8V to 3.6V, making it ideal for battery-powered and portable applications. With a typical propagation delay of 4.1ns at 3.3V and ultra-low static power consumption (0.9µA max), this device delivers high-speed performance while minimizing energy usage. The SN74AUP3G04YFPR is fully specified for partial-power-down applications using Ioff circuitry, which disables outputs when VCC is 0V, preventing damaging backflow current.

Detailed Technical Specifications

Parameter Value
Supply Voltage (VCC) 0.8V to 3.6V
Input Voltage (VI) 0V to 3.6V
Output Voltage (VO) 0V to VCC
Propagation Delay (tpd) @ 3.3V 4.1ns (typ), 6.5ns (max)
Static Power Consumption (ICC) 0.9µA (max)
Input Capacitance (CI) 1.5pF (typ)
Output Drive (IOL/IOH) ±4mA @ 3.3V
Operating Temperature -40°C to +85°C
Package 8-DSBGA (1.6mm x 1.6mm)

Key Features

  • Ultra-low static power consumption: 0.9µA max
  • Wide operating voltage range: 0.8V to 3.6V
  • High speed: tpd 4.1ns typ at 3.3V
  • Ioff partial-power-down mode prevents backflow current
  • Schmitt-trigger inputs for noise immunity
  • ESD protection: 2kV HBM, 1kV CDM
  • Lead-free and RoHS compliant

Target Applications

  • 5G base station control logic: signal inversion in power management units
  • Automotive dashboard displays: level shifting and signal conditioning
  • Portable medical devices: low-power logic for sensor interfaces
  • IoT edge nodes: battery-operated sensor hubs
  • Wearable electronics: smartwatches and fitness trackers

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN74AUP3G04YFPR. Our core advantages include:

  • 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
  • In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
  • HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
  • Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
  • BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

  • 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
  • RoHS Compliant: All electronic components comply with international environmental and safety standards.
  • Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
