SN74AVCB164245DGG TI Voltage Level Translator | 16-bit | 1.2V-3.6V, Auto Direction

Product Overview

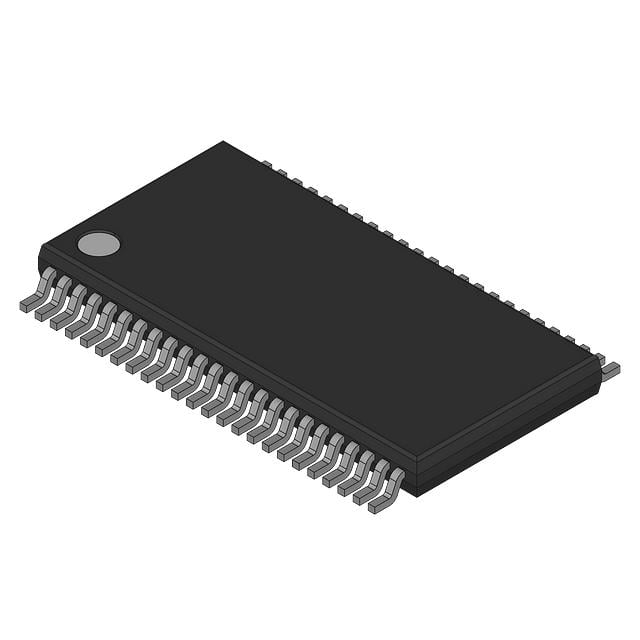

The SN74AVCB164245DGG is a 16-bit (dual 8-bit) non-inverting bus transceiver from Texas Instruments, designed for asynchronous communication between two data buses. It features automatic direction sensing, eliminating the need for a direction control pin. The device operates with a wide supply voltage range from 1.2V to 3.6V on both A and B ports, making it ideal for voltage level translation in mixed-voltage systems. The SN74AVCB164245DGG is offered in the TSSOP-48 package, providing a compact solution for space-constrained applications.

Detailed Technical Specifications

Key Features

• Automatic direction sensing simplifies design and reduces pin count
• Wide supply voltage range supports multiple voltage domains (1.2V, 1.5V, 1.8V, 2.5V, 3.3V)
• High data rate up to 100 Mbps suitable for high-speed interfaces
• Low propagation delay minimizes signal latency
• Bus hold circuitry eliminates external pull-up resistors
• Power-off protection ensures high-impedance outputs when VCC is 0V
• Compatible with JEDEC standards

Target Applications

• 5G base station control boards for level translation between FPGA (1.8V) and processor (3.3V)
• Automotive dashboard displays connecting MCU (3.3V) to display driver (1.8V)
• Industrial PLC modules for sensor interface (1.2V to 3.3V)
• Consumer electronics like smart speakers for codec and DSP communication
• Networking equipment (switches, routers) for GPIO expansion

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN74AVCB164245DGG. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
