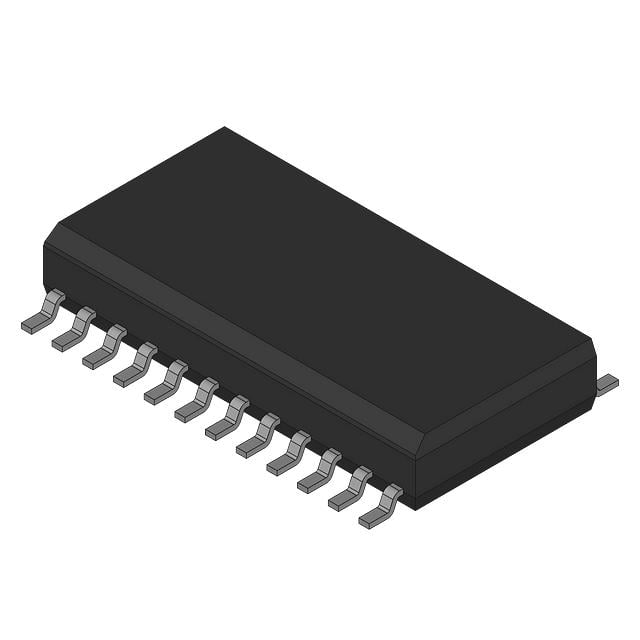

SN74BCT2953DW TI Bus Transceiver | 8-bit, Non-Inverting, 3-State

Product Overview

The SN74BCT2953DW from Texas Instruments is a high-performance 8-bit bus transceiver designed for bidirectional asynchronous communication between data buses. It features non-inverting outputs and 3-state outputs for bus-oriented applications. The device operates with a wide supply voltage range of 4.5V to 5.5V and is characterized for operation from -40°C to +85°C. Housed in a SOIC-24 package, it provides a compact solution for data transfer in digital systems.

Detailed Technical Specifications

Key Features

• 8-bit bidirectional bus transceiver
• Non-inverting data paths
• 3-state outputs for bus isolation
• High drive capability: -15 mA / 24 mA
• Fast propagation delay: 6.5 ns max
• ESD protection exceeds 2000 V per MIL-STD-883, Method 3015
• Latch-up performance exceeds 250 mA per JESD 17

Target Applications

• Data communication in 5G base stations (e.g., between baseband and RF modules)
• Automotive dashboard display interfaces
• Industrial control systems (PLC backplane buses)
• Memory bus buffering in servers
• Telecommunications switching equipment

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN74BCT2953DW. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
