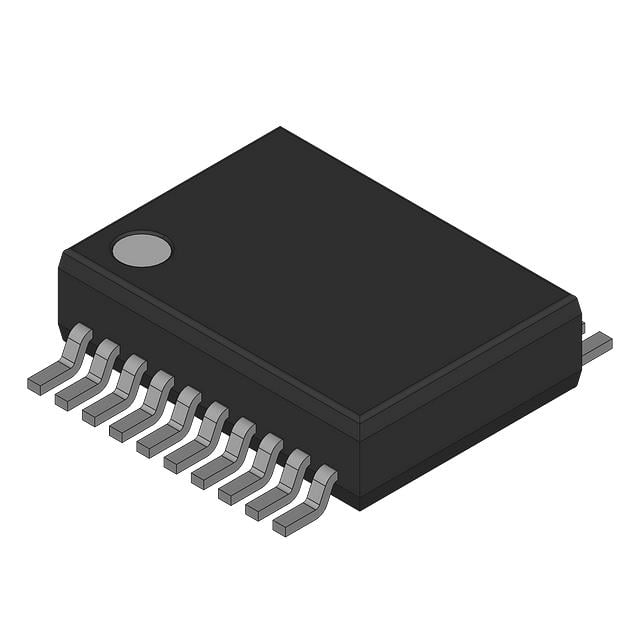

SN74BCT541ADBR TI Buffer/Driver | 20-SSOP | 8-bit, Non-Inverting, 3-State

Product Overview

The SN74BCT541ADBR is a high-performance octal buffer and line driver from Texas Instruments, designed for 5V logic systems. It features 8-bit non-inverting outputs with 3-state capability, making it ideal for bus-oriented applications. Housed in a compact 20-SSOP package, this device offers high drive current and low power consumption, ensuring reliable signal buffering and driving in demanding environments.

Detailed Technical Specifications

Key Features

• 8-bit non-inverting buffer/line driver with 3-state outputs
• High drive capability: ±64 mA sink, ±15 mA source
• Low propagation delay: 6.5 ns typical at 5V
• Wide operating voltage range: 4.5V to 5.5V
• Input hysteresis for improved noise margin
• Power-up 3-state to prevent bus contention
• ESD protection exceeds 2000V per MIL-STD-883
• Available in 20-SSOP package for space-constrained designs

Target Applications

• 5G base station control logic: buffering address/data buses between FPGA and memory modules
• Automotive dashboard display: driving LED indicators and segment displays
• Industrial PLC I/O modules: isolating and buffering sensor signals
• Telecommunications equipment: line driving for backplane buses
• Medical imaging systems: signal conditioning for data acquisition

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN74BCT541ADBR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
