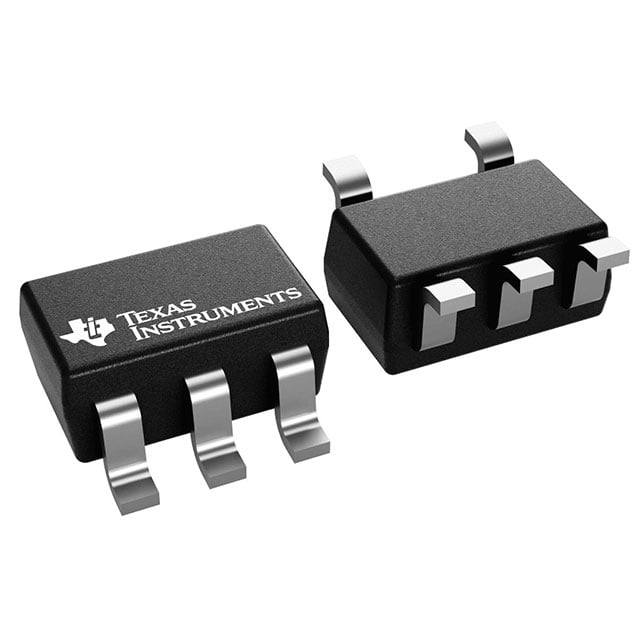

SN74CBT1G125DCKR TI Bus Switch | SC-70-5 | 1-bit, 4Ω

Product Overview

The SN74CBT1G125DCKR from Texas Instruments is a high-performance single-bit bus switch designed for low-voltage, high-speed signal routing. Housed in a compact SC-70-5 package, it features a low on-state resistance of 4Ω typical, ensuring minimal signal distortion. The device operates over a wide supply voltage range of 4.5V to 5.5V, making it suitable for 5V systems. With a propagation delay of only 250ps, it is ideal for applications requiring fast switching.

Detailed Technical Specifications

Key Features

• Low on-state resistance (4Ω) for minimal signal attenuation
• High bandwidth (100 MHz) supports high-speed data signals
• Low propagation delay (250ps) for real-time switching
• Wide supply voltage range (4.5V – 5.5V) compatible with standard 5V logic
• ESD protection exceeds 2000V HBM
• Ultra-small SC-70-5 package saves board space

Target Applications

• 5G Base Station: Signal routing in control boards for antenna switching
• Automotive Dashboard: Multiplexing display data lines in infotainment systems
• Industrial PLC: Bus isolation and signal selection in I/O modules
• Consumer Electronics: Audio/video signal switching in set-top boxes
• Medical Devices: Data acquisition path selection in portable monitors

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN74CBT1G125DCKR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
