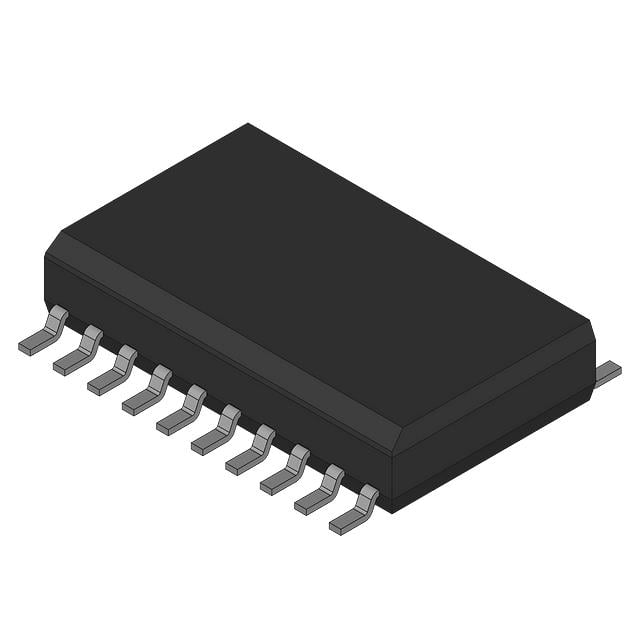

SN74CBT3245DWR TI Bus Switch | 8-Bit | 5V Tolerant, Low On-Resistance

Product Overview

The SN74CBT3245DWR from Texas Instruments is a high-performance 8-bit bus switch designed for bidirectional voltage translation and signal isolation. It features a 5V tolerant I/O interface, low on-resistance (5Ω typical), and fast switching speeds, making it ideal for hot-swap and bus isolation applications. The device operates over a wide supply voltage range of 4V to 5.5V and is available in a SOIC-20 package.

Detailed Technical Specifications

Key Features

• 8-bit bidirectional bus switch
• 5V tolerant I/O with VCC at 5V
• Low on-resistance (5Ω typical) minimizes signal distortion
• Fast switching (tON = 5 ns, tOFF = 5 ns)
• Flow-through pinout for easy PCB layout
• ESD protection exceeds 2 kV HBM
• Supports hot-swap applications

Target Applications

• 5G base station backplane isolation
• Automotive dashboard display bus switching
• Industrial PLC I/O module signal routing
• Server motherboard hot-swap control
• Consumer electronics (e.g., smart TV mainboard)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN74CBT3245DWR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
