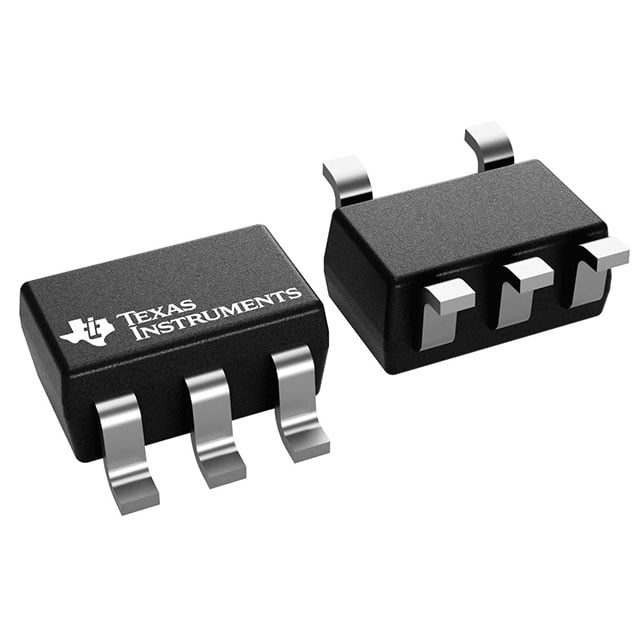

SN74CBTD1G125DCKR TI Bus Switch | SC-70-5 | 1-Bit, 4.5-5.5V

Product Overview

The SN74CBTD1G125DCKR is a high-performance single-bit bus switch from Texas Instruments, designed for bus isolation and voltage translation. It features a 1-bit 2-port configuration with a low on-state resistance of typically 5 ohms, enabling minimal signal distortion. The device operates from a 4.5V to 5.5V supply and is housed in a compact SC-70-5 package, making it ideal for space-constrained applications.

Detailed Technical Specifications

Key Features

• Low on-state resistance (5 Ω typical) for minimal signal attenuation
• High bandwidth (100 MHz) suitable for digital and analog signals
• Low propagation delay (0.25 ns) for high-speed data paths
• Single-bit bus switch with active-high enable (OE)
• Wide supply voltage range (4.5V to 5.5V)
• ESD protection exceeds 2000V HBM
• SC-70-5 package for space-saving designs

Target Applications

• 5G base station: Signal routing in control boards
• Automotive dashboard: Bus isolation for infotainment systems
• Industrial automation: PLC I/O module switching
• Consumer electronics: Smartphone accessory detection
• Networking equipment: Router port isolation
