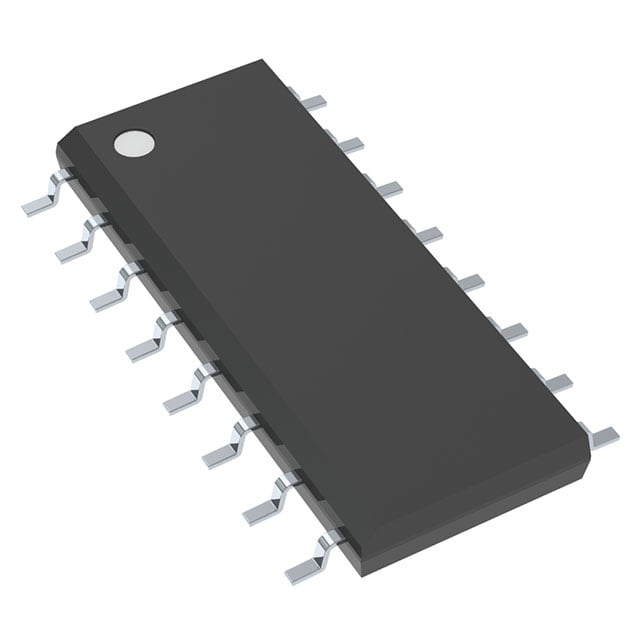

SN74F257DR TI Multiplexer | 16-SOIC | 4-Ch, 2-Input, Non-Inverting

QUOTE REQ
×

WECHAT SUPPORT

Direct Engineer Contact

WeChat QR

ID: Jasin_Semi

HK/SZ Authorized Supply

×

ENTERPRISE QQ

Fast Quotation

QQ QR

Official ID: 4008823823

×

TELEGRAM SUPPORT

Global & CIS Region Support

Telegram QR

@你的Telegram用户名

STM32F103C8T6NE555PLM358DRESP32-WROOM-32TL431AIDBZRAMS1117-3.3LM7805MAX3232CSEPC817CTPS5430DDAR STM32F103C8T6NE555PLM358DRESP32-WROOM-32TL431AIDBZRAMS1117-3.3LM7805MAX3232CSEPC817CTPS5430DDAR
1N40072N2222IRFZ44NFGA25N120S8050M7(1N4007)SS14TIP122AO3400IKW40N120H3 1N40072N2222IRFZ44NFGA25N120S8050M7(1N4007)SS14TIP122AO3400IKW40N120H3
ATMEGA328P-AUESP8266-12ELM2596S-ADJBC547BIRLZ44NMCP2515-I/STSN65HVD230AD8232L293DTDA7297 ATMEGA328P-AUESP8266-12ELM2596S-ADJBC547BIRLZ44NMCP2515-I/STSN65HVD230AD8232L293DTDA7297
产品描述
🧪 SAMPLE SUPPORT ✅ 100% Original & Traceable 🚀 Inquiry Today, Ship Today 🛡️ Escrow.com Secured Payment

Product Overview

The SN74F257DR is a high-speed quad 2-input multiplexer from Texas Instruments, designed for data selection and routing in digital systems. It features four independent multiplexers, each with two data inputs (A and B) and a common select input (S). The outputs are non-inverting and provide the selected data when the output enable (OE) is low. This device is fabricated using advanced Schottky bipolar technology, offering fast propagation delays and low power consumption. It is housed in a 16-pin SOIC package, suitable for surface-mount applications.

Detailed Technical Specifications

Parameter Value
Supply Voltage (VCC) 4.5 V to 5.5 V
Input Voltage Range 0 V to 5.5 V
Output Voltage Range 0 V to VCC
Propagation Delay (tpd) 6.5 ns (typ) at 5 V, 50 pF
Power Dissipation (PD) 22 mW (typ) per gate
Operating Temperature 0°C to 70°C
Package 16-SOIC
Logic Family F (Fast)
Number of Channels 4
Number of Inputs per Channel 2
Output Type Non-Inverting

Key Features

  • Quad 2-input multiplexer with common select and enable
  • Non-inverting outputs
  • High speed: typical propagation delay of 6.5 ns
  • Low power consumption: 22 mW per gate typical
  • Wide operating voltage range: 4.5 V to 5.5 V
  • Inputs are overvoltage tolerant up to 5.5 V
  • Outputs drive up to 10 LSTTL loads
  • Available in 16-SOIC package for space-saving designs

Target Applications

  • Data routing in 5G base station control boards
  • Signal selection in automotive dashboard displays
  • Multiplexing in industrial PLC I/O modules
  • Bus interface in telecommunications equipment
  • Function selection in test and measurement instruments

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN74F257DR. Our core advantages include:

  • 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
  • In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
  • HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
  • Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
  • BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

  • 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
  • RoHS Compliant: All electronic components comply with international environmental and safety standards.
  • Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

SN74F257DR 是德州儀器(TI)生產的高速四路2輸入多路復用器,專為數字系統中的數據選擇和路由設計。它包含四個獨立的多路復用器,每個具有兩個數據輸入(A和B)和一個公共選擇輸入(S)。當輸出使能(OE)為低電平時,輸出提供所選數據,且為同相輸出。該器件採用先進的肖特基雙極工藝製造,具有快速傳播延遲和低功耗。它採用16引腳SOIC封裝,適合表面貼裝應用。

詳細技術參數

參數 數值
電源電壓 (VCC) 4.5 V 至 5.5 V
輸入電壓範圍 0 V 至 5.5 V
輸出電壓範圍 0 V 至 VCC
傳播延遲 (tpd) 6.5 ns(典型值,5 V,50 pF)
功耗 (PD) 22 mW(典型值,每門)
工作溫度 0°C 至 70°C
封裝 16-SOIC
邏輯系列 F(快速)
通道數 4
每通道輸入數 2
輸出類型 同相

核心特性

  • 四路2輸入多路復用器,帶公共選擇和使能
  • 同相輸出
  • 高速:典型傳播延遲6.5 ns
  • 低功耗:每門典型功耗22 mW
  • 寬工作電壓範圍:4.5 V 至 5.5 V
  • 輸入過壓耐受能力高達5.5 V
  • 輸出可驅動多達10個LSTTL負載
  • 採用16-SOIC封裝,節省空間

典型應用場景

  • 5G基站控制板中的數據路由
  • 汽車儀表盤顯示器的信號選擇
  • 工業PLC I/O模塊的多路復用
  • 電信設備的總線接口
  • 測試測量儀器的功能選擇

環球供應鏈與批發合作夥伴方案

在 Jasin Chip,我們為 SN74F257DR 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括:

  • 全天候環球客戶支援:專業團隊為您提供即時報價及技術支援,無需漫長等待。
  • 現貨庫存,即日發貨:確保現貨充足。下午 4 點前確認訂單,即可安排當天寄出。
  • 深港聯動,結算靈活:深圳直發全球,物流高效可靠;支援香港銀行戶口轉賬及多幣種結算。
  • Escrow 擔保交易:支援 Escrow.com 平台交易,保障買賣雙方權益,小批量訂單亦可安心在線下單。
  • BOM 配單與樣板服務:提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨,具備完善的品質保證及產品可追溯性。

  • 100% 原廠正貨:承諾所有供應零件均為原裝現貨,品質嚴格把關,來源清晰可追溯。
  • 符合 RoHS 認證:所有電子元器件均符合國際環保標準及相關安全認證。
  • 原廠封裝保護:嚴格保留原廠原始包裝及封條,確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨,提供 BOM 配單及現貨庫存支援,歡迎查詢。
