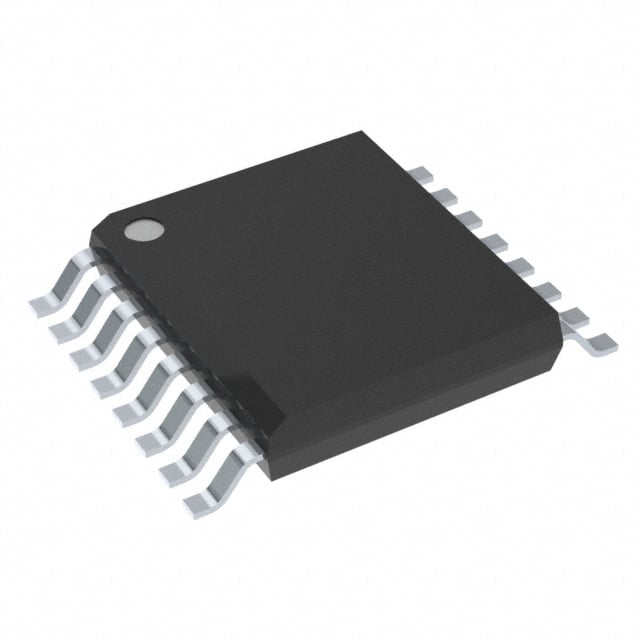

SN74HC174DBR TI Flip Flops | 16-SSOP | 6-bit, D-Type, Non-Inverting

Product Overview

The SN74HC174DBR from Texas Instruments is a high-speed, 6-bit D-type flip-flop with non-inverting outputs, designed for use in a wide range of digital applications. Packaged in a compact 16-SSOP, this device features a common clock (CLK) and master reset (MR) input, making it ideal for data storage, counting, and synchronization tasks. Operating from a 2V to 6V supply, it offers low power consumption and high noise immunity, characteristic of the HC family.

Detailed Technical Specifications

Key Features

• 6-bit D-type flip-flop with non-inverting outputs
• Common clock and master reset inputs
• Wide operating voltage range: 2V to 6V
• High noise immunity: typical VNIH = VNIL = 28% of VCC
• Low power consumption: 80µA max ICC
• Balanced propagation delays: tPLH = tPHL
• Output drive capability: 10 LSTTL loads
• Compatible with TTL levels
• Available in SSOP package for space-saving designs

Target Applications

The SN74HC174DBR is suitable for a variety of digital systems requiring data storage and synchronization. Specific applications include:

• 5G base station control logic: used for register storage in beamforming control units
• Automotive dashboard displays: data latching for segment drivers
• Industrial programmable logic controllers (PLCs): state machine implementation
• Consumer electronics: remote control decoders and keypad scanners
• Medical devices: patient monitoring system data buffering
