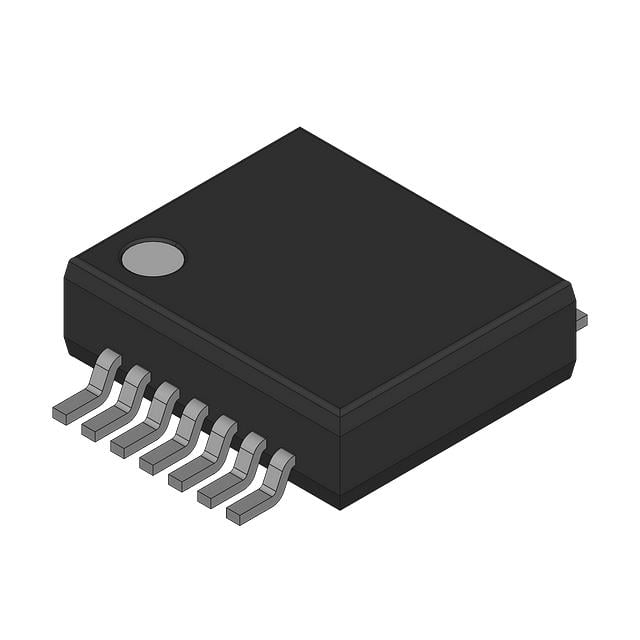

SN74HC86DBR TI Logic Gates | 14-SSOP | Quad 2-Input XOR, 2V-6V

Product Overview

The SN74HC86DBR from Texas Instruments is a high-speed quad 2-input exclusive-OR (XOR) gate integrated circuit. Housed in a compact 14-pin SSOP package, this device operates over a wide supply voltage range of 2V to 6V, making it suitable for battery-powered and industrial applications. It features balanced propagation delays and high noise immunity, typical of HC family logic.

Detailed Technical Specifications

Key Features

• Quad 2-input XOR gate logic function
• Wide operating voltage range: 2V to 6V
• High noise immunity: VNIH = 28% VCC, VNIL = 21% VCC (typ)
• Low power consumption: 20µA max ICC
• Balanced propagation delays: tPLH ≈ tPHL
• Inputs are TTL-voltage compatible
• ESD protection exceeds 2000V (HBM)
• Available in SSOP package for space-constrained designs

Target Applications

• 5G base station control logic: signal comparison and parity checking
• Automotive dashboard displays: data validation and alarm generation
• Industrial PLCs: logic decision circuits
• Consumer electronics: remote control decoding
• Medical devices: patient monitoring alarm logic

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN74HC86DBR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
