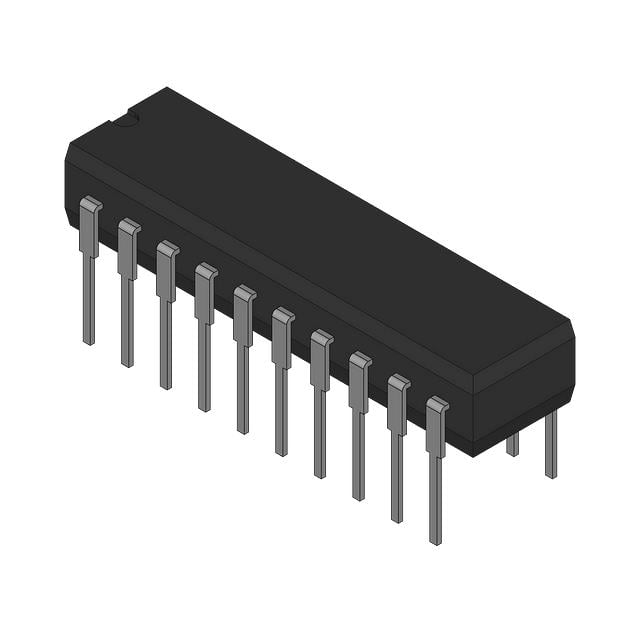

SN74HCT563N TI Latches | DIP-20 | Octal Transparent D-Type Latch with 3-State Outputs

Product Overview

The SN74HCT563N is a high-speed CMOS octal transparent D-type latch with 3-state outputs from Texas Instruments. It is designed for use in 5V systems and features TTL-compatible inputs. The device is ideal for applications requiring temporary storage of data or bus interfacing. The latch is transparent when the latch enable (LE) input is high, and the outputs follow the data inputs. When LE is low, the outputs are latched. The output enable (OE) input controls the 3-state outputs, allowing multiple devices to share a common bus.

Detailed Technical Specifications

Key Features

• Octal transparent D-type latch with 3-state outputs
• TTL-compatible inputs
• Wide operating voltage range: 4.5V to 5.5V
• High noise immunity
• Low power consumption
• 3-state outputs for bus-oriented applications
• Standard DIP-20 package

Target Applications

• Data storage and transfer in 5G base stations
• Bus interface in automotive dashboard systems
• Industrial control systems
• Memory address latching
• Microprocessor or microcontroller I/O expansion

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN74HCT563N. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
