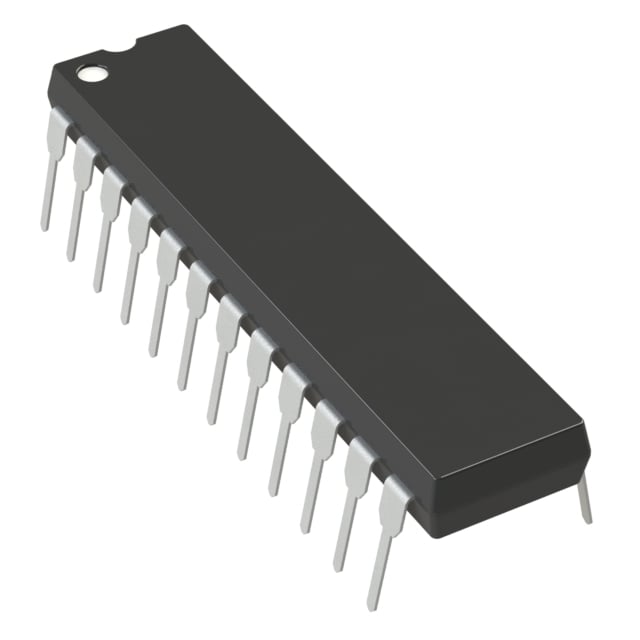

SN74HCT646NT TI Bus Transceiver | 24-PDIP | 8-Bit, Non-Inverting, 3-State

Product Overview

The SN74HCT646NT is a high-speed CMOS octal bus transceiver from Texas Instruments, designed for asynchronous two-way communication between data buses. It features non-inverting 3-state outputs and operates from a 4.5V to 5.5V supply. The device is housed in a 24-pin PDIP package, making it suitable for through-hole PCB assembly. With TTL-compatible inputs and balanced propagation delays, it is ideal for interfacing between different logic families in industrial and automotive systems.

Detailed Technical Specifications

Key Features

• 8-bit bidirectional bus transceiver with non-inverting 3-state outputs
• Independent direction control for each byte (DIR and OE pins)
• TTL input compatibility with CMOS output levels
• Low power consumption: ICC max 80µA
• High noise immunity: VNH/VNL typical 28% of VCC
• ESD protection exceeds 2000V per MIL-STD-883, Method 3015

Target Applications

• Data bus isolation and buffering in 5G base station control boards
• Interface between microcontroller and peripheral modules in automotive dashboards
• Memory address/data bus driving in industrial PLCs
• Level translation in mixed-voltage systems (e.g., 3.3V to 5V)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN74HCT646NT. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
