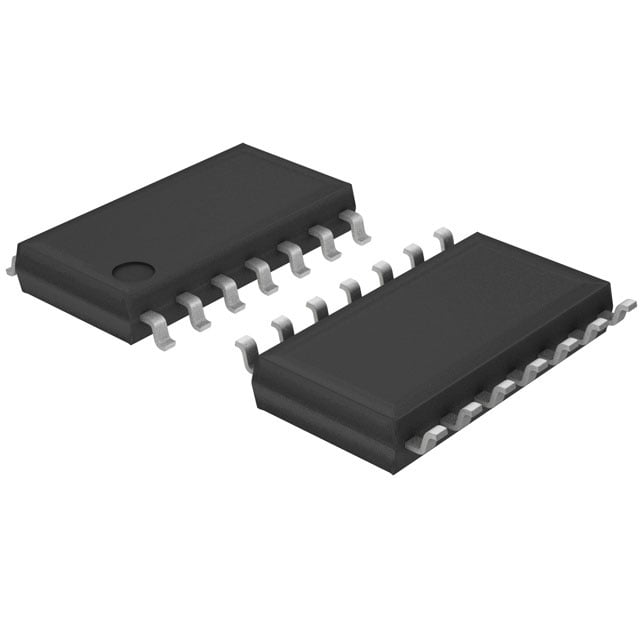

SN74LS10NS TI Logic Gates | Triple 3-Input NAND | 4.75V-5.25V

Product Overview

The SN74LS10NS is a triple 3-input NAND gate integrated circuit from Texas Instruments, part of the 74LS family of low-power Schottky TTL logic devices. It is designed for use in a wide range of digital logic applications requiring high speed and low power consumption. The device contains three independent NAND gates, each with three inputs, providing flexibility in logic design. The SN74LS10NS is available in a standard SOP package, making it suitable for surface-mount assembly processes.

Detailed Technical Specifications

Key Features

• Triple 3-input NAND gate configuration
• Low power consumption: 22 mW per gate typical
• High speed: propagation delay 15 ns typical
• Wide operating voltage range: 4.75V to 5.25V
• Schottky-clamped transistors for high performance
• Standard TTL input and output levels
• Available in SOP package for surface mount
• Direct replacement for other 74LS10 devices

Target Applications

The SN74LS10NS is ideal for a variety of digital logic applications, including:

• 5G base station control logic
• Automotive dashboard display controllers
• Industrial automation PLCs
• Consumer electronics like gaming consoles
• Data communication equipment
• Medical device control systems

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN74LS10NS. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
