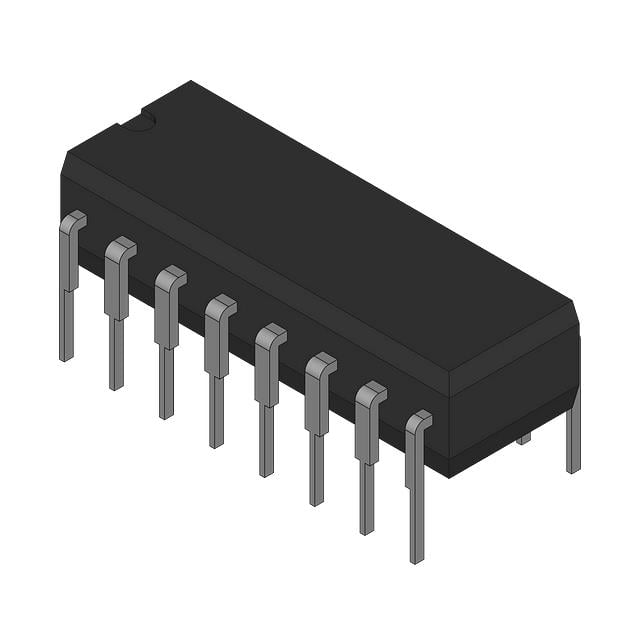

SN74LS247NE4 TI BCD-to-7-Segment Decoder/Driver | Open-Collector Output, 4.75V-5.25V

Product Overview

The SN74LS247NE4 is a BCD-to-7-segment decoder/driver designed by Texas Instruments. It features open-collector outputs capable of driving indicator segments directly. The device accepts a 4-bit binary-coded decimal (BCD) input and converts it into the appropriate 7-segment display code. It is designed for use with common-anode LED displays and includes a lamp test input and a blanking input for display control. The SN74LS247NE4 operates from a 5V supply and is characterized for operation from 0°C to 70°C.

Detailed Technical Specifications

Key Features

• BCD-to-7-segment decoder/driver for common-anode displays
• Open-collector outputs for direct LED drive
• Lamp test input for checking all segments
• Blanking input for display blanking
• Ripple-blanking capability for leading/trailing zero suppression
• Low power consumption
• Wide operating voltage range: 4.75V to 5.25V

Target Applications

• Digital clocks and timers
• Instrumentation displays (e.g., multimeters, frequency counters)
• Industrial control panels
• Automotive dashboard displays
• Point-of-sale terminals
• Medical equipment displays
• 5G base station status indicators
