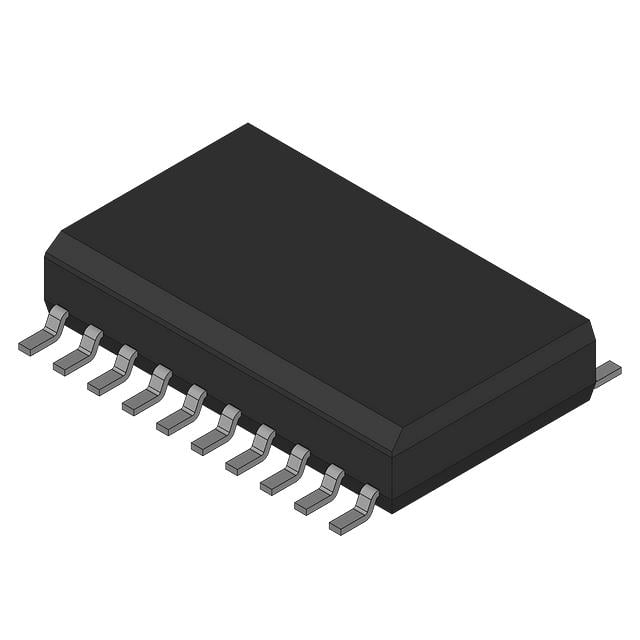

SN74LS323DWR TI Shift Register | 8-bit, 3-State, 0-35MHz

Product Overview

The SN74LS323DWR is a high-performance 8-bit bidirectional universal shift/storage register from Texas Instruments, featuring 3-state outputs. It operates from a 5V supply and is designed for use in a wide range of digital systems requiring parallel-to-serial or serial-to-parallel data conversion, storage, and shifting. The device includes a common asynchronous master reset (MR) and two mode control inputs (S0, S1) to select the operating mode: hold, shift left, shift right, or parallel load. The 3-state outputs allow connection to a common bus line, making it ideal for bus-oriented systems.

Detailed Technical Specifications

Key Features

• 8-bit bidirectional universal shift/storage register
• 3-state outputs for bus-oriented applications
• Asynchronous master reset
• Two mode control inputs for hold, shift left, shift right, parallel load
• Typical shift frequency: 35 MHz
• Low power consumption: 65 mW typical
• Wide operating voltage: 4.75V to 5.25V
• Industry-standard 20-pin SOIC package

Target Applications

• 5G base station control logic
• Automotive dashboard display drivers
• Industrial automation PLC I/O modules
• Data communication serial-to-parallel converters
• FPGA configuration memory interface
• LED matrix display controllers

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN74LS323DWR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
