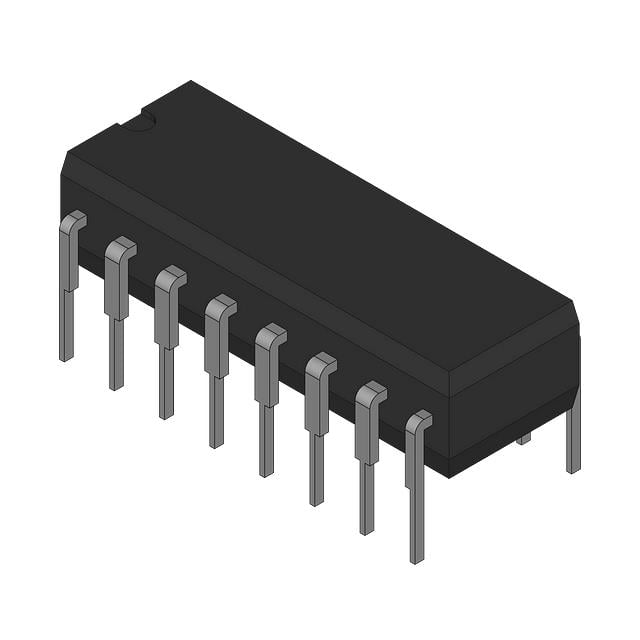

SN74LS390NS TI Dual 4-Bit Decade Counter | 2x4-Bit, LS Logic

Product Overview

The SN74LS390NS is a dual 4-bit decade counter from Texas Instruments, part of the 74LS family of low-power Schottky logic devices. Each counter consists of four master-slave flip-flops internally connected to provide a divide-by-two section and a divide-by-five section. The device can be configured as a BCD decade counter or a 3-bit binary counter. It features independent clock inputs and clear functions for each counter, making it versatile for various counting applications. The SN74LS390NS is available in a 16-pin SOP package, suitable for surface-mount assembly.

Detailed Technical Specifications

Key Features

• Dual 4-bit decade counters with independent clock and clear
• Low power consumption (typical 45 mW per counter)
• High speed: typical propagation delay of 18 ns
• Wide operating voltage range: 4.75 V to 5.25 V
• Direct clear for each counter
• Outputs can drive up to 10 LS-TTL loads
• Fully compatible with TTL and CMOS logic levels

Target Applications

• Frequency dividers in 5G base station timing circuits
• Digital counters in automotive dashboard displays
• Industrial process control timers
• Consumer electronics like digital clocks and stopwatches
• Data communication equipment for bit rate division

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN74LS390NS. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
