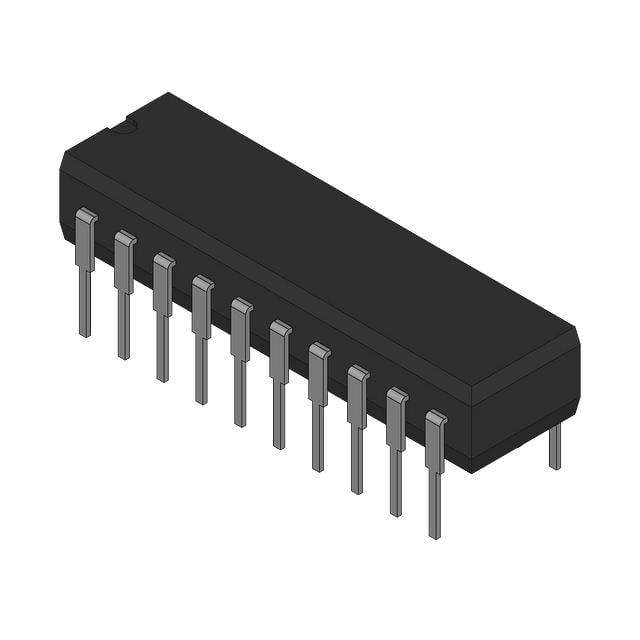

SN74LS644-1N3 TI Bus Transceiver | 20-PDIP | 8-Bit, 3-State, Inverting

Product Overview

The SN74LS644-1N3 is a high-performance octal bus transceiver from Texas Instruments, designed for bidirectional asynchronous communication between data buses. Housed in a 20-pin PDIP package, this device features 8-bit inverting 3-state outputs, making it ideal for multiplexed data transmission systems. It operates with a typical supply voltage of 5V and offers low power consumption characteristic of LS logic families.

Detailed Technical Specifications

Key Features

• 8-bit bidirectional bus transceiver with inverting 3-state outputs
• Separate output enable (OE) and direction control (DIR) pins
• Low power consumption: typical ICC = 54 mA
• Inputs are TTL-compatible
• High noise immunity: typical 400 mV
• Designed for memory and bus-oriented systems

Target Applications

• Data bus isolation and buffering in 5G base station control boards
• Interface between microcontroller and memory in automotive dashboard systems
• Signal routing in industrial PLC (Programmable Logic Controller) modules
• Bus arbitration in telecommunications switching equipment
• Level translation in mixed-voltage digital systems
