Product Overview

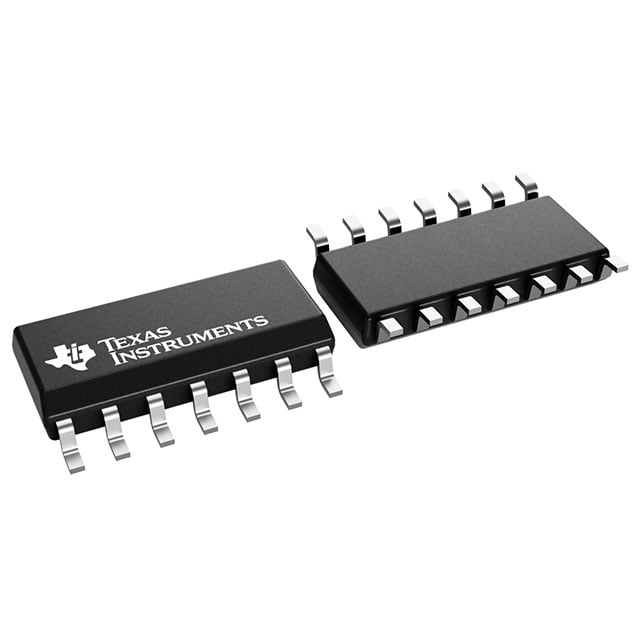

The SN74LV02AD from Texas Instruments is a quad 2-input positive-NOR gate designed for 2-V to 5.5-V VCC operation. This device contains four independent 2-input NOR gates, each performing the Boolean function Y = A + B in positive logic. The SN74LV02AD is fabricated using advanced LinBiCMOS technology, providing low power consumption and high noise immunity. It is available in a 14-pin SOIC package, making it suitable for space-constrained applications.

Detailed Technical Specifications

Parameter Value
Supply Voltage (VCC) 2 V to 5.5 V
Input Voltage (VI) 0 V to 5.5 V
Output Voltage (VO) 0 V to VCC
High-Level Input Voltage (VIH) 1.5 V (min) at VCC = 3 V
Low-Level Input Voltage (VIL) 0.5 V (max) at VCC = 3 V
High-Level Output Current (IOH) -12 mA at VCC = 3 V
Low-Level Output Current (IOL) 12 mA at VCC = 3 V
Propagation Delay (tpd) 7.5 ns (typ) at VCC = 3.3 V, CL = 50 pF
Operating Temperature -40°C to 85°C
Package 14-SOIC

Key Features

  • Wide operating voltage range: 2 V to 5.5 V
  • Low power consumption: 10-µA maximum ICC
  • High noise immunity: VNH = 0.2 × VCC (min)
  • Typical VOLP (output ground bounce) < 0.8 V at VCC = 3.3 V, TA = 25°C
  • Latch-up performance exceeds 250 mA per JESD 17
  • ESD protection exceeds JESD 22
  • Supports partial-power-down mode (Ioff)

Target Applications

The SN74LV02AD is ideal for a wide range of applications including:

  • 5G base station control logic
  • Automotive dashboard displays
  • Industrial automation controllers
  • Portable electronics (e.g., smartphones, tablets)
  • Networking equipment (e.g., routers, switches)
  • Medical devices (e.g., patient monitors)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN74LV02AD. Our core advantages include:

  • 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
  • In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
  • HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
  • Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
  • BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

  • 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
  • RoHS Compliant: All electronic components comply with international environmental and safety standards.
  • Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
