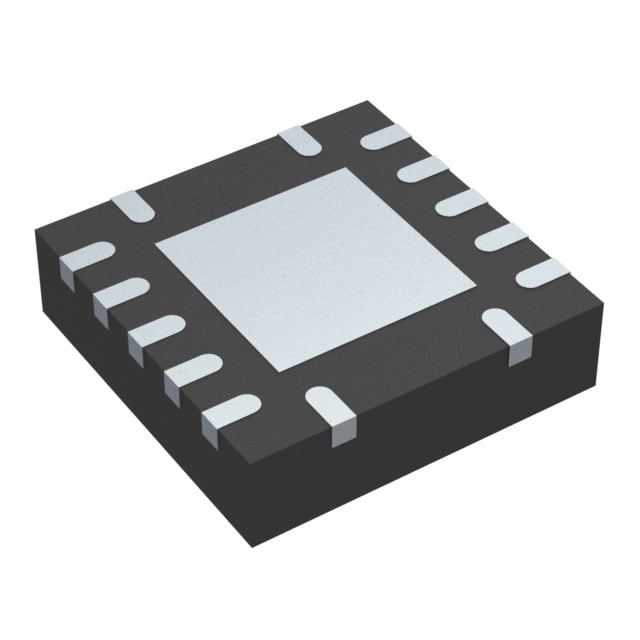

SN74LV125AQRGYRQ1 TI Buffer/Driver | 14-VQFN (3.5X3.5) | 4-Ch, 2V-5.5V

Product Overview

The SN74LV125AQRGYRQ1 is a quadruple bus buffer gate with 3-state outputs from Texas Instruments, designed for automotive applications. It operates from 2V to 5.5V, providing high noise immunity and low power consumption. The device features four independent buffer gates with 3-state outputs, making it ideal for driving bus lines or buffering memory address registers. Housed in a compact 14-VQFN (3.5x3.5mm) package, it is AEC-Q100 qualified for automotive reliability.

Detailed Technical Specifications

Key Features

• Quadruple bus buffer with 3-state outputs
• Wide supply voltage range: 2V to 5.5V
• High noise immunity: VOH = 0.1VCC max at low level
• Low power consumption: ICC = 20µA max
• 3-state outputs for bus-oriented applications
• ESD protection exceeds 2000V HBM
• AEC-Q100 qualified for automotive
• Available in small 14-VQFN package

Target Applications

• Automotive infotainment systems (e.g., dashboard displays)
• Advanced driver-assistance systems (ADAS) sensor interfaces
• 5G base station control logic
• Industrial automation PLC modules
• Memory address buffering in embedded systems

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN74LV125AQRGYRQ1. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

SN74LV125AQRGYRQ1 是德州儀器推出的四路總線緩衝閘極，具有三態輸出，專為汽車應用設計。工作電壓範圍為 2V 至 5.5V，具有高抗噪性和低功耗。該器件包含四個獨立的緩衝閘極，帶三態輸出，非常適合驅動總線或緩衝存儲器地址寄存器。採用緊湊的 14-VQFN（3.5x3.5mm）封裝，並通過 AEC-Q100 認證，確保汽車級可靠性。

詳細技術參數

核心特性

• 四路總線緩衝器，帶三態輸出
• 寬電源電壓範圍：2V 至 5.5V
• 高抗噪性：低電平時 VOH 最大 0.1VCC
• 低功耗：ICC 最大 20µA
• 三態輸出，適用於總線應用
• ESD 保護超過 2000V HBM
• 通過 AEC-Q100 汽車認證
• 小型 14-VQFN 封裝

典型應用場景

• 汽車信息娛樂系統（例如儀表板顯示）
• 先進駕駛輔助系統（ADAS）傳感器接口
• 5G 基站控制邏輯
• 工業自動化 PLC 模塊
• 嵌入式系統中的存儲器地址緩衝

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 SN74LV125AQRGYRQ1 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
