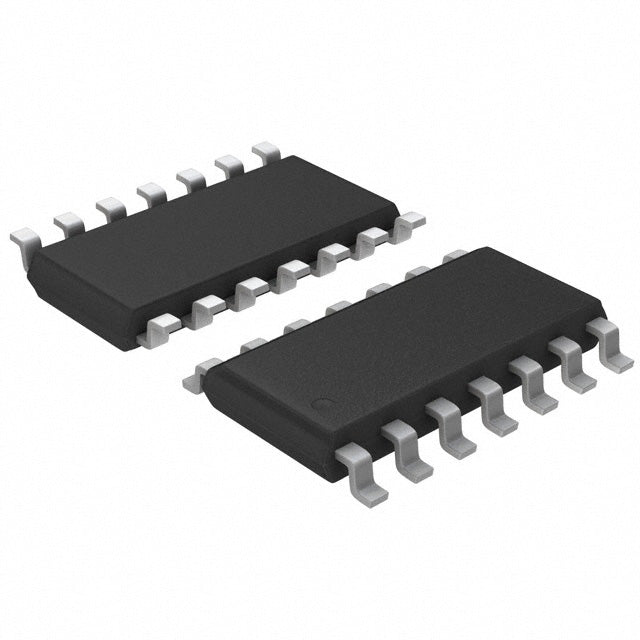

SN74LV164D TI Shift Register | 8-bit Serial-In Parallel-Out, 2V to 5.5V
Default Title：$0.00
🧪 SAMPLE SUPPORT
✅ 100% Original & Traceable
🚀 Inquiry Today, Ship Today
🛡️ Escrow.com Secured Payment
Product Overview
The SN74LV164D is a high-speed, low-power 8-bit serial-in, parallel-out shift register from Texas Instruments. It operates over a wide supply voltage range of 2V to 5.5V, making it suitable for battery-powered and industrial applications. The device features two serial data inputs (A and B) that are ANDed to provide a single serial input, and eight parallel outputs (Q0–Q7). Data is shifted on the rising edge of the clock (CLK) and an asynchronous master reset (MR) clears the register.
Detailed Technical Specifications
| Parameter | Value |
|---|---|
| Supply Voltage (VCC) | 2V to 5.5V |
| Input Voltage (VI) | 0V to VCC |
| Output Voltage (VO) | 0V to VCC |
| High-Level Input Voltage (VIH) | 0.7 × VCC (min) |
| Low-Level Input Voltage (VIL) | 0.3 × VCC (max) |
| High-Level Output Current (IOH) | –12 mA (max) |
| Low-Level Output Current (IOL) | 12 mA (max) |
| Propagation Delay (tpd) | 10.5 ns (typ) at 5V |
| Operating Temperature | –40°C to 125°C |
| Package | SOIC-14 |
Key Features
- 8-bit serial-in, parallel-out shift register
- Two serial inputs (A and B) for ANDed input
- Asynchronous master reset (MR)
- Wide operating voltage: 2V to 5.5V
- High speed: tpd = 10.5 ns at 5V
- Low power consumption: ICC = 20 µA (max)
- Output drive: ±12 mA at 5V
- ESD protection: 2 kV (HBM)
- RoHS compliant
Target Applications
- 5G base station control logic
- Automotive dashboard display drivers
- Industrial automation PLC I/O expansion
- Consumer electronics remote control decoders
- Medical device data acquisition
