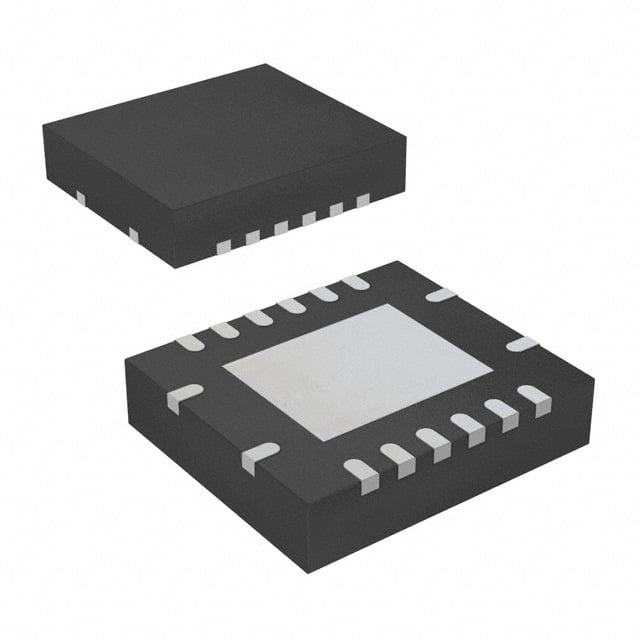

SN74LV165ABQBR TI Shift Register | 16-VQFN (4x3.5) | 8-bit, 2V to 5.5V

Product Overview

The SN74LV165ABQBR is a high-performance 8-bit parallel-load shift register from Texas Instruments, designed for low-voltage operation (2V to 5.5V). It features a 16-pin VQFN package (4x3.5mm) and is ideal for expanding digital inputs in space-constrained applications. The device allows parallel data loading via the SH/LD input and serial shifting via the CLK input, with a serial output (QH) for cascading multiple devices.

Detailed Technical Specifications

Key Features

• 8-bit parallel-load shift register with serial output
• Wide operating voltage range: 2V to 5.5V
• Low power consumption: ICC typically 20 µA
• High-speed operation: tpd = 10.5 ns at 3.3V
• Input hysteresis for noise immunity
• Supports cascading for expanded input count
• Industrial temperature range: -40°C to +125°C
• Compact VQFN package for space-constrained designs

Target Applications

• 5G base station control logic: monitoring multiple status signals
• Automotive dashboard: reading switch inputs (e.g., buttons, knobs)
• Industrial PLCs: expanding digital input modules
• Consumer electronics: remote control receivers, keypad scanners
• Medical devices: patient monitoring input expansion

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN74LV165ABQBR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
