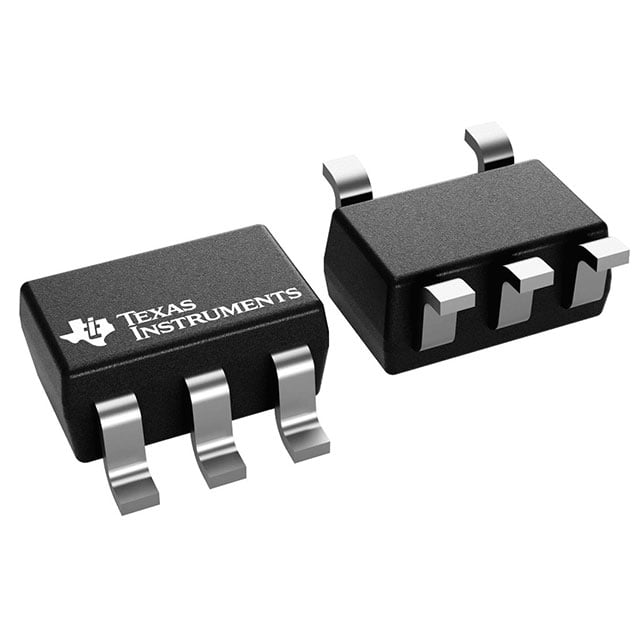

SN74LV1T86QDCKRQ1 TI XOR Gate | SC-70-5 | 1.8V-5.5V, 150Mbps

Product Overview

The SN74LV1T86QDCKRQ1 is a single 2-input exclusive-OR (XOR) gate from Texas Instruments, designed for automotive applications. It operates over a wide supply voltage range of 1.8V to 5.5V, making it suitable for interfacing between different voltage domains. The device features low power consumption, high noise immunity, and is available in a compact SC-70-5 package. It is qualified to AEC-Q100 for automotive reliability.

Detailed Technical Specifications

Key Features

• Single 2-input XOR gate with Schmitt-trigger inputs
• Wide supply voltage range: 1.8V to 5.5V
• High speed: tpd = 4.5 ns at 5V
• Low power consumption: ICC = 10 µA (max)
• Inputs accept voltages up to 5.5V regardless of VCC
• Outputs are referenced to VCC
• Automotive qualified: AEC-Q100
• Available in SC-70-5 package

Target Applications

The SN74LV1T86QDCKRQ1 is ideal for automotive electronics such as engine control units (ECUs), body control modules, infotainment systems, and advanced driver-assistance systems (ADAS). It can also be used in industrial applications like programmable logic controllers (PLCs), sensor interfaces, and signal conditioning. Specific examples include 5G base station control logic, automotive dashboard display interfaces, and battery management systems (BMS).

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN74LV1T86QDCKRQ1. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
