SN74LVC02ADB TI Logic Gate | Quad 2-Input NOR | 1.65-3.6V, 5ns

Product Overview

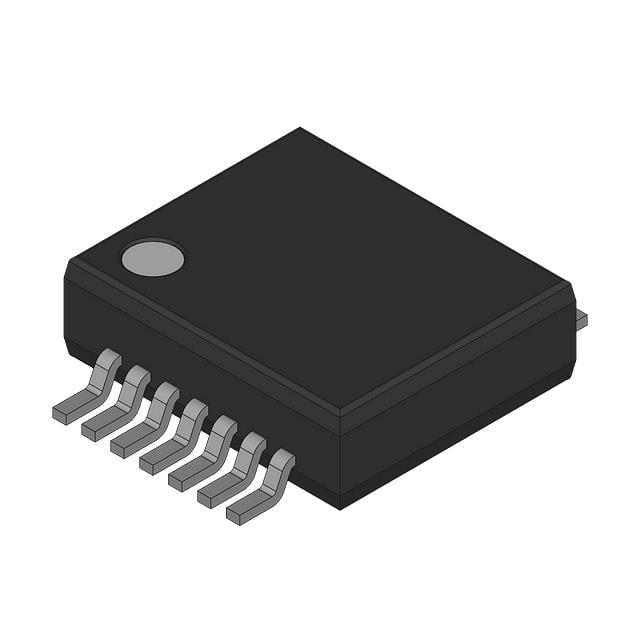

The SN74LVC02ADB is a high-performance, quad 2-input NOR gate from Texas Instruments, designed for 1.65-V to 3.6-V VCC operation. It is part of the LVC family, which combines low power consumption with high speed. The device features Schmitt-trigger inputs for noise immunity and supports partial-power-down mode (Ioff) to prevent backflow current. Available in a small-outline DB package, it is ideal for space-constrained applications.

Detailed Technical Specifications

Key Features

• Quad 2-input NOR gate functionality
• Wide operating voltage range: 1.65 V to 3.6 V
• High speed: tpd = 5 ns max at 3.3 V
• Schmitt-trigger inputs for slow or noisy signals
• Partial-power-down (Ioff) mode
• Low power consumption: 10 µA max ICC
• ESD protection: 2 kV HBM

Target Applications

• 5G base station control logic
• Automotive dashboard display interfaces
• Industrial sensor signal conditioning
• Portable battery-powered devices
• Data communication routers

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN74LVC02ADB. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
