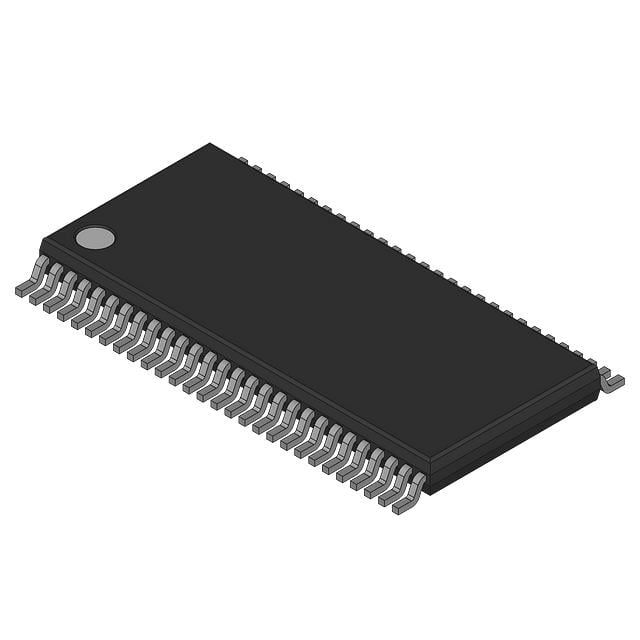

SN74LVC16646ADGG TI Bus Transceiver | 56-TSSOP | 16-Bit, 3.3V

Product Overview

The SN74LVC16646ADGG is a 16-bit bus transceiver and register from Texas Instruments, designed for 3.3-V VCC operation. It combines D-type flip-flops with 3-state outputs, providing bidirectional data flow between two buses (A and B). The device is ideal for driving high-capacitance loads and is available in a compact 56-TSSOP package.

Detailed Technical Specifications

Key Features

• 16-bit bidirectional bus transceiver with registers
• Supports mixed-mode voltage operation (3.3 V input/output with 5-V tolerant inputs)
• Low power consumption (typical ICC of 10 µA)
• High drive capability (±24 mA)
• Bus hold on data inputs eliminates need for external pull-up resistors
• Flow-through pinout for easy PCB layout
• ESD protection exceeds JESD 22 (2000-V HBM, 1000-V CDM)

Target Applications

• 5G base station control boards (e.g., data bus isolation between FPGA and processor)
• Automotive dashboard display systems (e.g., communication between MCU and display driver)
• Industrial PLC modules (e.g., I/O bus expansion)
• Networking equipment (e.g., router backplane data transfer)
• Medical imaging devices (e.g., data acquisition boards)
