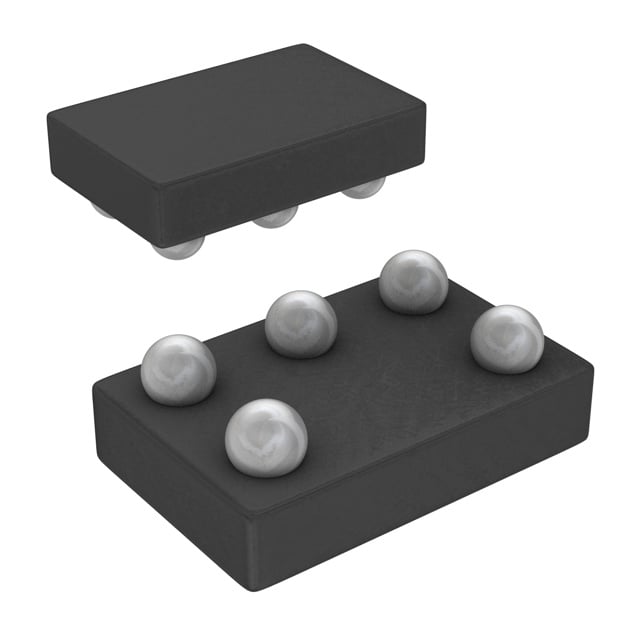

SN74LVC1G00YZPR TI Single 2-Input NAND Gate | 5-DSBGA (1.4X0.9) | 1.65V-5.5V, 5ns

Product Overview

The SN74LVC1G00YZPR is a single 2-input NAND gate from Texas Instruments, designed for low-voltage, high-speed logic operations. Housed in a compact 5-DSBGA (1.4mm x 0.9mm) package, it offers excellent performance for space-constrained applications. The device operates over a wide supply voltage range of 1.65V to 5.5V, making it suitable for interfacing with various logic families. With a typical propagation delay of 5ns at 3.3V, it ensures fast signal processing. The SN74LVC1G00YZPR is part of TI's LVC family, known for low power consumption and robust noise immunity.

Detailed Technical Specifications

Key Features

• Wide supply voltage range: 1.65V to 5.5V
• High speed: tpd = 5ns at 3.3V
• Low power consumption: 10µA max ICC
• 5.5V tolerant inputs
• Supports partial power-down mode (Ioff)
• ESD protection: 2kV HBM, 1kV CDM
• Ultra-small package: 5-DSBGA (1.4mm x 0.9mm)

Target Applications

The SN74LVC1G00YZPR is ideal for a wide range of applications, including:

• 5G base station control logic
• Automotive dashboard displays
• Portable and battery-powered devices
• Industrial sensors and actuators
• Signal gating and conditioning
• Level translation between different voltage domains

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN74LVC1G00YZPR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
