SN74LVC1G02DPWR TI Single 2-Input NOR Gate | 4-X2SON (0.8x0.8) | 1.65V-5.5V, 5ns

Product Overview

The SN74LVC1G02DPWR is a single 2-input NOR gate from Texas Instruments, designed for 1.65-V to 5.5-V VCC operation. This device is fabricated using advanced LVC technology, offering high speed and low power consumption. Housed in a compact 4-X2SON (0.8x0.8) package, it is ideal for space-constrained applications. The SN74LVC1G02DPWR provides a standard NOR logic function with Schmitt-trigger inputs for noise immunity and slow input transitions.

Detailed Technical Specifications

Key Features

• Wide supply voltage range: 1.65 V to 5.5 V
• High speed: tpd = 5 ns at 3.3 V
• Low power consumption: 10 µA max ICC
• Schmitt-trigger inputs for noise immunity
• Supports partial power-down (Ioff)

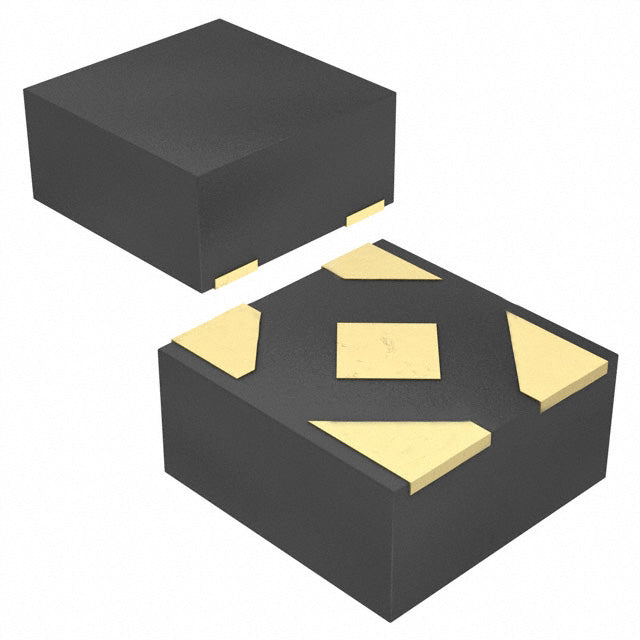

• Ultra-small package: 4-X2SON (0.8x0.8)
• ESD protection: 2 kV HBM, 1 kV CDM

Target Applications

The SN74LVC1G02DPWR is suitable for a wide range of applications, including:

• 5G base station control logic
• Automotive dashboard display modules
• Portable and battery-powered devices
• Industrial sensors and actuators
• IoT edge nodes
• Signal gating and conditioning
