Product Overview

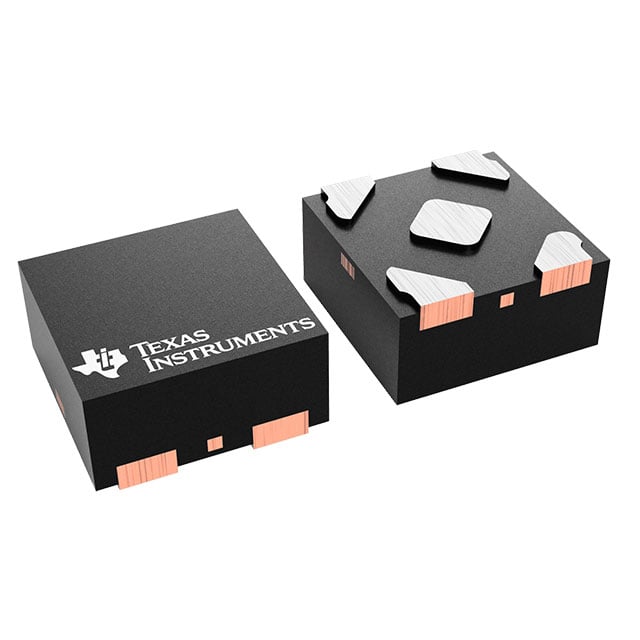

The SN74LVC1G07DPWR is a single buffer/driver with open-drain output from Texas Instruments, designed for 1.65-V to 5.5-V VCC operation. This device provides the highest performance and design flexibility, with a low power consumption and a small footprint. The open-drain output allows for wired-OR and level-shifting applications. The device is available in a tiny 5-X2SON (0.8 mm × 0.8 mm) package, making it ideal for space-constrained applications.

Detailed Technical Specifications

Parameter Value
Supply Voltage (VCC) 1.65 V to 5.5 V
Input Voltage (VI) 0 V to 5.5 V
Output Type Open-Drain
High-Level Output Current (IOH) –32 mA (at 3.3 V)
Low-Level Output Current (IOL) 32 mA (at 3.3 V)
Propagation Delay (tpd) 3.8 ns (typical at 3.3 V, 50 pF)
Operating Temperature Range –40°C to +125°C
Package 5-X2SON (0.8 mm × 0.8 mm)

Key Features

  • Wide operating voltage range: 1.65 V to 5.5 V
  • Open-drain output for wired-OR and level shifting
  • Low power consumption: 10-μA maximum ICC
  • High drive capability: ±32 mA at 3.3 V
  • Ultra-small package: 5-X2SON (0.8 mm × 0.8 mm)
  • ESD protection exceeds JESD 22: 2000-V Human-Body Model (A114-A)
  • Latch-up performance exceeds 100 mA per JESD 78, Class II

Target Applications

  • 5G base stations: Signal buffering and level translation in control boards
  • Automotive dashboard: Driving indicator LEDs with open-drain output
  • Portable electronics: Battery-powered devices requiring low power
  • Industrial sensors: Interfacing with microcontrollers at different voltage levels
  • IoT modules: Space-constrained wireless modules

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN74LVC1G07DPWR. Our core advantages include:

  • 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
  • In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
  • HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
  • Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
  • BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

  • 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
  • RoHS Compliant: All electronic components comply with international environmental and safety standards.
  • Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

SN74LVC1G07DPWR 是德州儀器推出的單路緩衝器/驅動器,具有開漏輸出,工作電壓範圍為 1.65 V 至 5.5 V。該器件提供高性能和設計靈活性,功耗低且佔用面積小。開漏輸出支持線或邏輯和電平轉換。器件採用超小型 5-X2SON(0.8 mm × 0.8 mm)封裝,非常適合空間受限的應用。

詳細技術參數

參數 數值
電源電壓 (VCC) 1.65 V 至 5.5 V
輸入電壓 (VI) 0 V 至 5.5 V
輸出類型 開漏
高電平輸出電流 (IOH) –32 mA(3.3 V 時)
低電平輸出電流 (IOL) 32 mA(3.3 V 時)
傳播延遲 (tpd) 3.8 ns(典型值,3.3 V,50 pF)
工作溫度範圍 –40°C 至 +125°C
封裝 5-X2SON(0.8 mm × 0.8 mm)

核心特性

  • 寬工作電壓範圍:1.65 V 至 5.5 V
  • 開漏輸出,支持線或邏輯和電平轉換
  • 低功耗:最大 ICC 為 10 μA
  • 高驅動能力:3.3 V 時 ±32 mA
  • 超小型封裝:5-X2SON(0.8 mm × 0.8 mm)
  • ESD 保護超過 JESD 22 標準:2000-V 人體放電模型(A114-A)
  • 閂鎖性能超過 100 mA,符合 JESD 78 Class II 標準

典型應用場景

  • 5G 基站:控制板中的信號緩衝和電平轉換
  • 汽車儀表板:使用開漏輸出驅動指示燈 LED
  • 便攜式電子設備:需要低功耗的電池供電設備
  • 工業傳感器:與不同電壓水平的微控制器接口
  • 物聯網模塊:空間受限的無線模塊

環球供應鏈與批發合作夥伴方案

在 Jasin Chip,我們為 SN74LVC1G07DPWR 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括:

  • 全天候環球客戶支援:專業團隊為您提供即時報價及技術支援,無需漫長等待。
  • 現貨庫存,即日發貨:確保現貨充足。下午 4 點前確認訂單,即可安排當天寄出。
  • 深港聯動,結算靈活:深圳直發全球,物流高效可靠;支援香港銀行戶口轉賬及多幣種結算。
  • Escrow 擔保交易:支援 Escrow.com 平台交易,保障買賣雙方權益,小批量訂單亦可安心在線下單。
  • BOM 配單與樣板服務:提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨,具備完善的品質保證及產品可追溯性。

  • 100% 原廠正貨:承諾所有供應零件均為原裝現貨,品質嚴格把關,來源清晰可追溯。
  • 符合 RoHS 認證:所有電子元器件均符合國際環保標準及相關安全認證。
  • 原廠封裝保護:嚴格保留原廠原始包裝及封條,確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨,提供 BOM 配單及現貨庫存支援,歡迎查詢。
