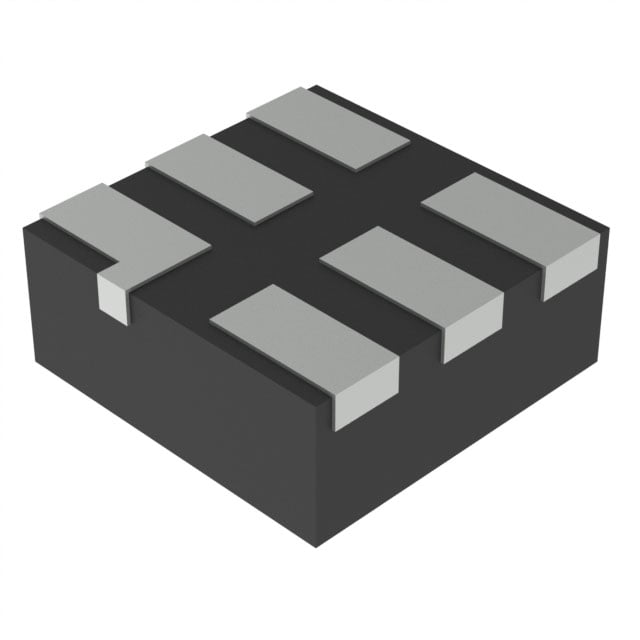

SN74LVC1G08DSF2 TI Single 2-Input AND Gate | 6-SON (1x1) | 1.65V-5.5V, 5ns

Product Overview

The SN74LVC1G08DSF2 is a single 2-input positive-AND gate from Texas Instruments, designed for 1.65-V to 5.5-V VCC operation. This device is fabricated using advanced LVC technology, offering high speed and low power consumption. The SN74LVC1G08DSF2 is available in a space-saving 6-pin SON package (1 mm x 1 mm), making it ideal for compact and portable applications. It provides a balanced propagation delay and high noise immunity, ensuring reliable performance in various digital logic systems.

Detailed Technical Specifications

Key Features

• Wide supply voltage range: 1.65 V to 5.5 V
• High speed: tpd = 5 ns (typ) at 3.3 V
• Low power consumption: 10 μA max ICC
• ±32 mA output drive at 3.3 V
• Inputs accept voltages up to 5.5 V
• Ultra-small 6-SON (1 mm x 1 mm) package
• ESD protection exceeds JESD 22
• Latch-up performance exceeds 100 mA per JESD 78

Target Applications

The SN74LVC1G08DSF2 is suitable for a wide range of applications, including:

• 5G base stations: signal conditioning and control logic
• Automotive dashboard: indicator control and sensor interface
• Portable electronics: battery-powered devices requiring low power
• Industrial automation: PLC I/O modules and sensor hubs
• Consumer electronics: smart home devices and wearables

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN74LVC1G08DSF2. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
