SN74LVC1G14YEAR TI Inverter Schmitt Trigger | 5-DSBGA (1.4X0.9) | Single, 1.65V-5.5V

Product Overview

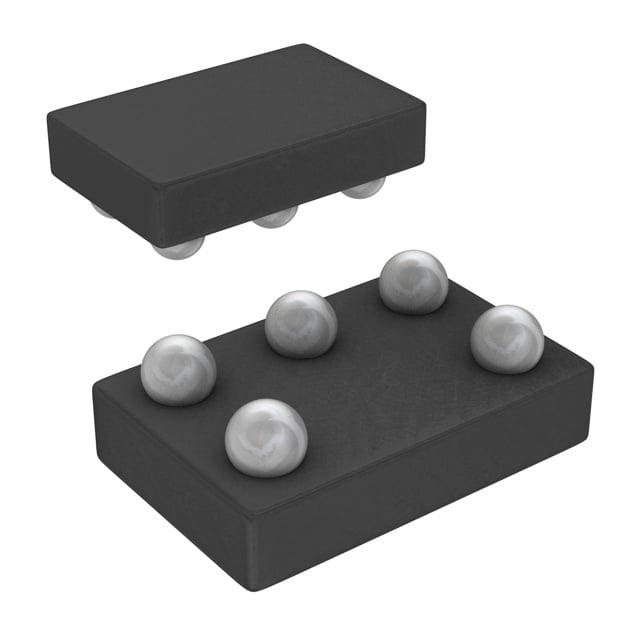

The SN74LVC1G14YEAR is a single Schmitt-trigger inverter from Texas Instruments, designed for 1.65-V to 5.5-V VCC operation. It provides inverting functionality with hysteresis for noise immunity, making it ideal for signal conditioning in noisy environments. Housed in a compact 5-DSBGA (1.4 mm × 0.9 mm) package, it is suitable for space-constrained applications.

Detailed Technical Specifications

Key Features

• Schmitt-trigger input for noise immunity
• Wide operating voltage range: 1.65 V to 5.5 V
• High drive capability: ±32 mA at 3.3 V
• Low propagation delay: 3.7 ns typical at 3.3 V
• Ultra-small package: 5-DSBGA (1.4 mm × 0.9 mm)
• Supports partial power-down (Ioff) mode
• ESD protection: 2 kV HBM, 1 kV CDM

Target Applications

• Signal conditioning in 5G base stations (e.g., cleaning noisy digital signals from RF modules)
• Automotive dashboard displays (e.g., debouncing switch inputs)
• Portable electronics (e.g., smartphone sensor interfaces)
• Industrial sensors (e.g., level shifting and noise filtering)
• IoT devices (e.g., battery-powered wireless modules)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN74LVC1G14YEAR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
