Product Overview

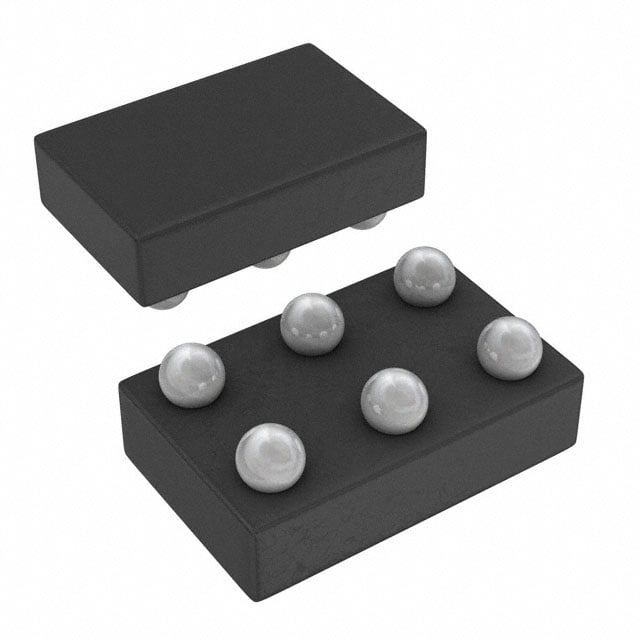

The SN74LVC1G18YZAR is a single 1-of-2 non-inverting demultiplexer from Texas Instruments, designed for 1.65-V to 5.5-V VCC operation. This device features a demultiplexer function with a common data input (A) and two outputs (Y0, Y1) selected by the select input (S). It is available in a space-saving 6-DSBGA package (0.9 mm x 1.4 mm), making it ideal for compact designs. The device supports partial-power-down applications using Ioff circuitry, which disables outputs when VCC is 0 V, preventing damaging backflow current.

Detailed Technical Specifications

Parameter Value
Supply Voltage (VCC) 1.65 V to 5.5 V
Maximum Propagation Delay (tpd) 3.3 ns at 3.3 V, 50 pF
Input Voltage Range 0 V to 5.5 V
Output Drive (at 3.3 V) ±24 mA
Operating Temperature -40°C to +85°C
Package 6-DSBGA (0.9 mm x 1.4 mm)
ESD Protection (HBM) 2000 V

Key Features

  • Wide operating voltage range: 1.65 V to 5.5 V
  • High speed: tpd = 3.3 ns max at 3.3 V
  • Low power consumption: 10 µA max ICC
  • Ioff supports partial-power-down mode
  • ESD protection exceeds JESD 22
  • Ultra-small 6-DSBGA package

Target Applications

  • 5G base station control logic: signal routing in antenna interface boards
  • Automotive dashboard display: select between backup camera and navigation video signals
  • Portable electronics: battery-powered devices requiring low power and small footprint
  • Industrial sensors: multiplexing sensor outputs to a single ADC input

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN74LVC1G18YZAR. Our core advantages include:

  • 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
  • In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
  • HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
  • Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
  • BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

  • 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
  • RoHS Compliant: All electronic components comply with international environmental and safety standards.
  • Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
