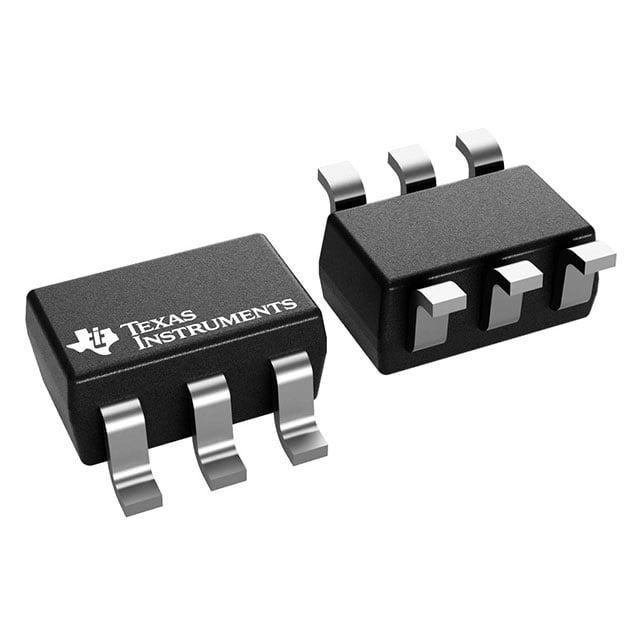

SN74LVC1G27DCKR TI Logic Gates | SC-70-6 | 1.65V-5.5V, 3-Input NOR

Product Overview

The SN74LVC1G27DCKR is a single 3-input positive-NOR gate from Texas Instruments, designed for 1.65-V to 5.5-V VCC operation. This device performs the Boolean function Y = A + B + C in positive logic. It is fabricated using advanced LVC technology, offering low power consumption and high noise immunity. The SC-70-6 package is ultra-small, making it ideal for space-constrained applications.

Detailed Technical Specifications

Key Features

• Wide operating voltage range: 1.65 V to 5.5 V
• Low power consumption: 10-μA max ICC
• High noise immunity: VOH and VOL meet or exceed VIH and VIL
• Supports down translation to VCC
• ±24-mA output drive at 3.3 V
• IOFF supports partial-power-down mode
• Latch-up performance exceeds 100 mA per JESD 78, Class II
• ESD protection exceeds JESD 22: 2000-V Human-Body Model (A114-A), 200-V Machine Model (A115-A)
• Ultra-small SC-70-6 package (2 mm × 2.1 mm)

Target Applications

• 5G base station control logic: Used in power sequencing and signal gating for RF modules.
• Automotive dashboard: Implements warning logic for low fuel, door ajar, and seatbelt reminders.
• Portable electronics: Battery management systems for over-discharge protection.
• Industrial sensors: Logic combination for alarm conditions in temperature/pressure monitors.
• Consumer IoT: Smart home hubs for input debouncing and status indication.
