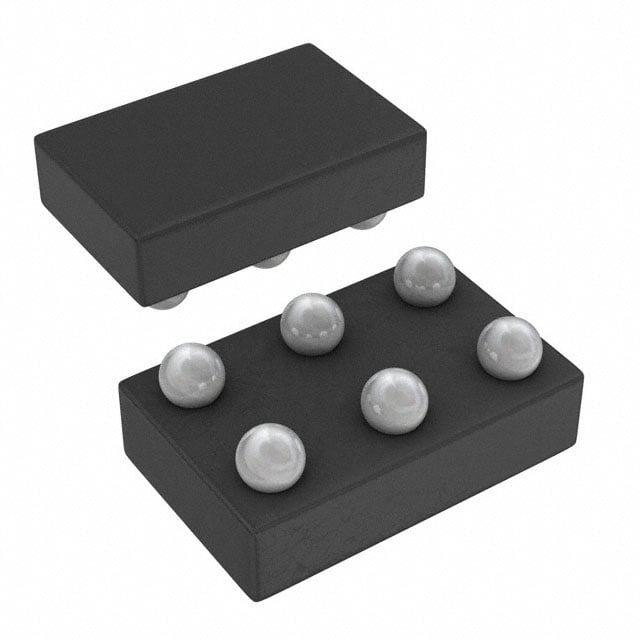

SN74LVC1G3157YZTR TI Analog Switch | 6-DSBGA | 1:2 SPDT, 1.65-5.5V

Product Overview

The SN74LVC1G3157YZTR is a high-performance single-pole double-throw (SPDT) analog switch from Texas Instruments, designed for general-purpose switching applications. It operates over a wide supply voltage range of 1.65V to 5.5V, making it suitable for both low-voltage and standard logic systems. The device features low on-state resistance (typically 6Ω at 4.5V) and excellent signal integrity with low distortion. Housed in a compact 6-DSBGA (0.9mm x 1.4mm) package, it is ideal for space-constrained designs.

Detailed Technical Specifications

Key Features

• Wide supply voltage range: 1.65V to 5.5V
• Low on-state resistance: 6Ω typ at 4.5V
• High bandwidth: 300 MHz
• Fast switching: tON = 4.3ns, tOFF = 4.5ns
• Low power consumption: ICC = 1μA max
• Break-before-make switching
• ESD protection: ±2 kV HBM
• Ultra-small 6-DSBGA package

Target Applications

The SN74LVC1G3157YZTR is ideal for a variety of applications including signal routing in 5G base stations, audio signal switching in automotive dashboards, data acquisition systems, battery-powered devices, and portable electronics. Specific examples: used as an analog multiplexer in a 5G remote radio unit (RRU) for antenna calibration, or as a signal selector in an automotive infotainment system.
