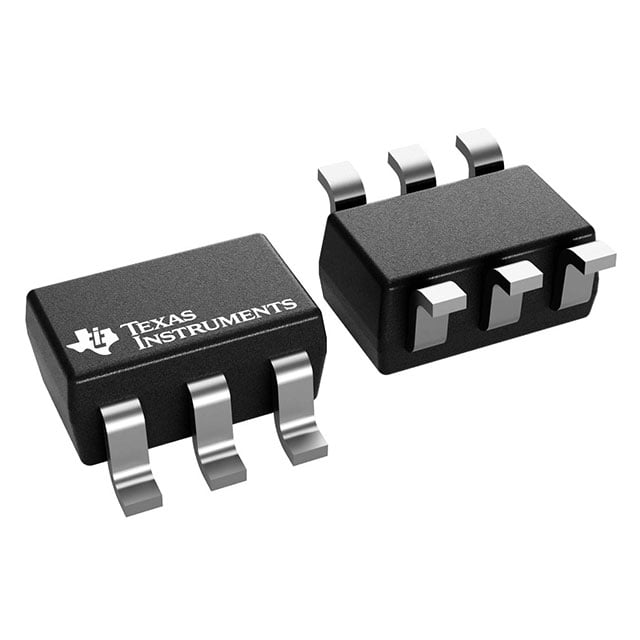

SN74LVC1G3208DCKR TI Configurable Multi-Function Gate | SC-70-6 | 1.65V-5.5V, 3.3ns

Product Overview

The SN74LVC1G3208DCKR from Texas Instruments is a single configurable multi-function gate that integrates AND, OR, and inverter functions in a compact SC-70-6 package. Operating from 1.65V to 5.5V, it supports mixed-voltage systems and delivers propagation delays as low as 3.3ns at 3.3V. This device is ideal for space-constrained applications requiring logic flexibility, such as signal conditioning, enable/disable functions, and level translation.

Detailed Technical Specifications

Key Features

• Configurable logic: AND, OR, inverter, buffer, and more
• Wide supply voltage range: 1.65V to 5.5V
• High speed: tpd = 3.3ns at 3.3V
• Low power consumption: 10µA max ICC
• Inputs accept voltages up to 5.5V regardless of VCC
• Outputs support up to 24mA drive
• ESD protection: 2kV HBM
• Available in lead-free SC-70-6 package

Target Applications

• 5G base station: Signal enable/disable for RF front-end modules
• Automotive dashboard: Logic gating for display control and sensor interfaces
• Industrial sensors: Level translation and signal conditioning
• Portable electronics: Power management logic and GPIO expansion
• IoT devices: Configurable logic for protocol bridging

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN74LVC1G3208DCKR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
