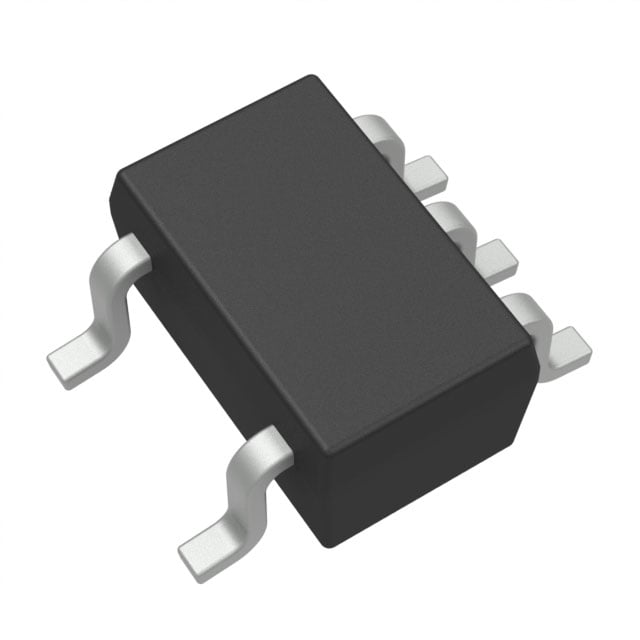

SN74LVC1G32QDCKRKN TI Single 2-Input OR Gate | 1.65V-5.5V, 5ns Propagation Delay

Product Overview

The SN74LVC1G32QDCKRKN is a single 2-input positive-OR gate from Texas Instruments, designed for 1.65-V to 5.5-V VCC operation. This device is part of the LVC family, offering low-voltage operation and high drive capability. The SN74LVC1G32QDCKRKN performs the Boolean function Y = A + B in positive logic. It is available in a small SC-70 package, making it ideal for space-constrained applications.

Detailed Technical Specifications

Key Features

• Wide operating voltage range: 1.65 V to 5.5 V
• High drive capability: ±32 mA at 3 V
• Low propagation delay: 5 ns typical at 3.3 V
• Inputs accept voltages up to 5.5 V
• ESD protection exceeds JESD 22
• Latch-up performance exceeds 100 mA per JESD 78
• Available in small SC-70 package

Target Applications

The SN74LVC1G32QDCKRKN is suitable for a wide range of applications including:

• 5G base stations: signal conditioning and logic gating in control modules
• Automotive dashboard: indicator logic and sensor signal processing
• Portable electronics: battery-powered devices requiring low power consumption
• Industrial control: PLC I/O modules and sensor interfaces
• Consumer electronics: smart home devices and wearables

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN74LVC1G32QDCKRKN. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

SN74LVC1G32QDCKRKN 是德州儀器（TI）的一款單路2輸入正或門，工作電壓範圍為1.65 V至5.5 V。該器件屬於LVC系列，具有低電壓操作和高驅動能力。SN74LVC1G32QDCKRKN 在正邏輯中執行布爾函數 Y = A + B。它採用小型 SC-70 封裝，非常適合空間受限的應用。

詳細技術參數

核心特性

• 寬工作電壓範圍：1.65 V 至 5.5 V
• 高驅動能力：±32 mA 在 3 V
• 低傳播延遲：典型值 5 ns 在 3.3 V
• 輸入可接受高達 5.5 V 的電壓
• ESD 保護超過 JESD 22 標準
• 閂鎖性能超過 100 mA 每 JESD 78
• 採用小型 SC-70 封裝

典型應用場景

SN74LVC1G32QDCKRKN 適用於多種應用，包括：

• 5G 基站：控制模塊中的信號調理和邏輯門控
• 汽車儀表盤：指示燈邏輯和傳感器信號處理
• 便攜式電子設備：需要低功耗的電池供電設備
• 工業控制：PLC I/O 模塊和傳感器接口
• 消費電子：智能家居設備和可穿戴設備

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 SN74LVC1G32QDCKRKN 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
