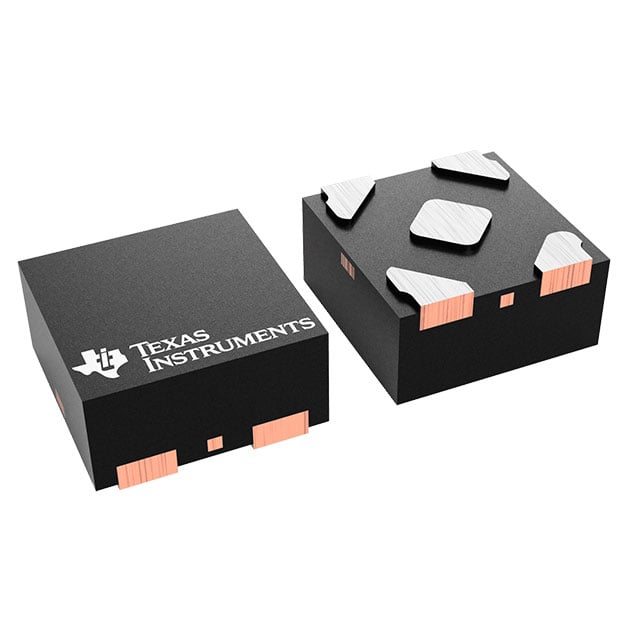

SN74LVC1G38DPWR TI Logic Gates | 5-X2SON (0.8x0.8) | Single 2-Input NAND, Open Drain

Product Overview

The SN74LVC1G38DPWR is a single 2-input positive-NAND gate with open-drain output from Texas Instruments. Designed for 1.65-V to 5.5-V VCC operation, this device provides the function Y = A ● B with an open-drain output that requires a pull-up resistor. The open-drain configuration allows wired-AND connections and level shifting. The device is available in a ultra-small 5-X2SON (0.8 mm x 0.8 mm) package, ideal for space-constrained applications.

Detailed Technical Specifications

Key Features

• Wide operating voltage range: 1.65 V to 5.5 V
• Open-drain output for wired-AND and level translation
• Ultra-small 5-X2SON (0.8 mm × 0.8 mm) package
• Low power consumption: 10-μA max ICC
• ±24-mA output drive at 3.3 V
• Inputs accept voltages up to 5.5 V
• ESD protection exceeds JESD 22
• Latch-up performance exceeds 100 mA per JESD 78, Class II

Target Applications

• 5G base station control logic: Used for signal gating and level shifting in power management modules.
• Automotive dashboard: Open-drain output for driving indicator LEDs with external pull-up.
• Portable electronics: Battery-powered devices requiring low power and small footprint.
• Industrial sensors: Wired-AND configuration for multiple sensor interrupt lines.
• IoT modules: Level translation between 1.8-V MCU and 3.3-V peripherals.

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN74LVC1G38DPWR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

SN74LVC1G38DPWR 是德州儀器推出的單路2輸入正與非門，具有開漏輸出。該器件支持 1.65 V 至 5.5 V 的電源電壓範圍，實現 Y = A ● B 功能，開漏輸出需外接上拉電阻。開漏配置支持線與連接和電平轉換。器件採用超小型 5-X2SON（0.8 mm × 0.8 mm）封裝，適用於空間受限的應用。

詳細技術參數

核心特性

• 寬工作電壓範圍：1.65 V 至 5.5 V
• 開漏輸出，支持線與和電平轉換
• 超小型 5-X2SON（0.8 mm × 0.8 mm）封裝
• 低功耗：最大 ICC 為 10 μA
• 3.3 V 時 ±24 mA 輸出驅動能力
• 輸入可承受高達 5.5 V 電壓
• ESD 保護超過 JESD 22 標準
• 閂鎖性能超過 100 mA，符合 JESD 78 Class II 標準

典型應用場景

• 5G 基站控制邏輯：用於電源管理模塊中的信號門控和電平轉換。
• 汽車儀表盤：開漏輸出配合外部上拉驅動指示 LED。
• 便攜式電子設備：需要低功耗和小尺寸的電池供電設備。
• 工業傳感器：多個傳感器中斷信號的線與連接。
• 物聯網模塊：1.8 V MCU 與 3.3 V 外設之間的電平轉換。

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 SN74LVC1G38DPWR 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
