SN74LVC1G57YZPR TI Configurable Gate | 6-DSBGA | 1.65-5.5V, 150Mbps

Product Overview

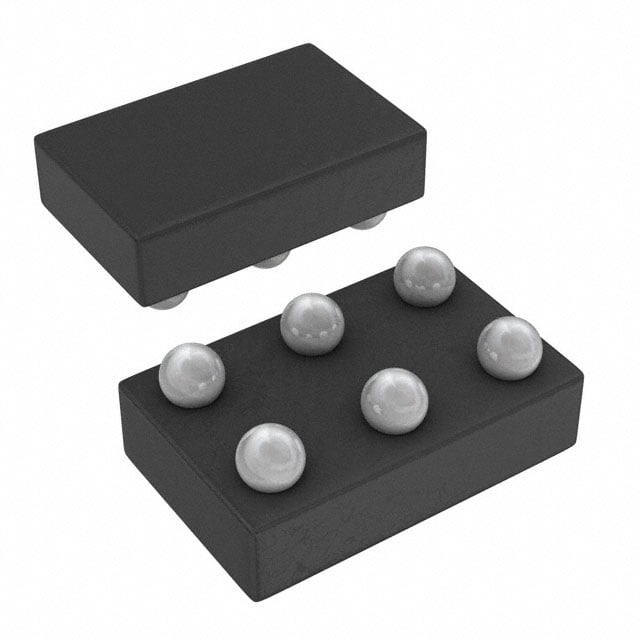

The SN74LVC1G57YZPR is a single configurable multiple-function gate from Texas Instruments, designed for 1.65-V to 5.5-V VCC operation. This device combines a variety of logic functions (AND, OR, NAND, NOR, XOR, XNOR, inverter, and buffer) in a single package, selectable via three input pins. Housed in a compact 6-DSBGA (0.9mm x 1.4mm) package, it is ideal for space-constrained applications requiring flexible logic implementation.

Detailed Technical Specifications

Key Features

• Configurable logic function: AND, OR, NAND, NOR, XOR, XNOR, inverter, buffer
• Wide supply voltage range: 1.65 V to 5.5 V
• High speed: tpd = 3.8 ns typical at 3.3 V
• Low power consumption: 10 µA max ICC
• ±32 mA output drive at 3.3 V
• Inputs accept voltages up to 5.5 V
• ESD protection exceeds JESD 22 (2000-V HBM, 1000-V CDM)
• Available in ultra-small 6-DSBGA package (0.9mm x 1.4mm)

Target Applications

• 5G base station control logic: used for signal routing and configuration in remote radio units (RRUs)
• Automotive dashboard: implements custom logic for display control and sensor interfaces
• Portable electronics: battery-powered devices requiring low power and small footprint
• Industrial sensors: configurable logic for signal conditioning and data aggregation
• IoT edge nodes: flexible logic for protocol conversion and power management
