Product Overview

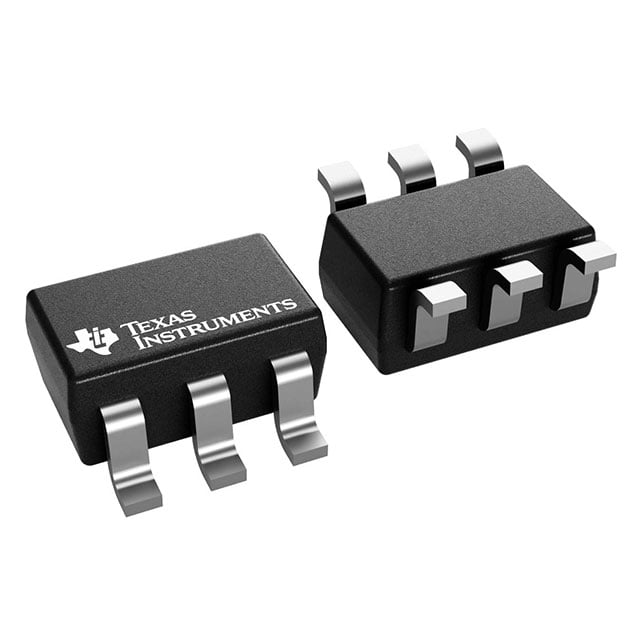

The SN74LVC1G58DCKR from Texas Instruments is a single configurable multifunction gate designed for 1.65-V to 5.5-V VCC operation. This device provides a wide range of logic functions (AND, OR, NAND, NOR, XOR, XNOR, inverter, buffer) selectable by three input pins. Housed in a compact SC-70-6 package, it is ideal for space-constrained applications requiring flexible logic implementation.
Detailed Technical Specifications
| Parameter |
Value |
| Supply Voltage (VCC) |
1.65 V to 5.5 V |
| Input Voltage (VI) |
0 V to 5.5 V |
| Output Voltage (VO) |
0 V to VCC |
| High-Level Input Voltage (VIH) |
0.65 × VCC (min) at 1.65V-2.7V; 1.7V (min) at 2.7V-3.6V; 0.7 × VCC (min) at 3.6V-5.5V |
| Low-Level Input Voltage (VIL) |
0.35 × VCC (max) at 1.65V-2.7V; 0.7V (max) at 2.7V-3.6V; 0.3 × VCC (max) at 3.6V-5.5V |
| High-Level Output Current (IOH) |
-24 mA at 3V; -32 mA at 4.5V |
| Low-Level Output Current (IOL) |
24 mA at 3V; 32 mA at 4.5V |
| Propagation Delay (tpd) |
5 ns (typ) at 3.3V, 15 pF load |
| Input Capacitance (Ci) |
3 pF (typ) |
| Operating Temperature |
-40°C to +125°C |
| Package |
SC-70-6 |
Key Features
- Wide operating voltage range: 1.65 V to 5.5 V
- Configurable logic function: AND, OR, NAND, NOR, XOR, XNOR, inverter, buffer
- High drive capability: ±24 mA at 3 V, ±32 mA at 4.5 V
- Low propagation delay: 5 ns typical at 3.3 V
- Low power consumption: 10 µA max ICC
- Inputs accept voltages up to 5.5 V regardless of VCC
- ESD protection exceeds JESD 22 (2000-V HBM, 1000-V CDM)
- Available in SC-70-6 package (2 mm × 2.1 mm)
Target Applications
- 5G base station control logic: Used for signal routing and function selection in baseband units.
- Automotive dashboard: Configurable logic for indicator control and sensor interface.
- Portable electronics: Battery-powered devices requiring low-voltage logic flexibility.
- Industrial sensors: Logic function selection for multiple sensor outputs.
- IoT edge nodes: Configurable gate for protocol bridging and signal conditioning.
Global Supply Chain & Wholesale Solutions
At Jasin Chip, we provide professional supply chain and wholesale solutions for
SN74LVC1G58DCKR. Our core advantages include:
-
24/7 Global Customer Support: Professional team providing instant
quotes and technical support worldwide.
-
In-stock Inventory, Same-day Shipping: We maintain localized stock;
orders confirmed before 4 PM are shipped the same day.
-
HK-SZ Synergy, Flexible Settlement: Direct global shipping from
Shenzhen with support for HK bank transfers and multi-currency.
-
Escrow Secured Transactions: We support Escrow.com for secure
transactions, ensuring peace of mind for batch orders.
-
BOM Kitting & Sampling Services: Specialized sourcing for
testing samples and urgent shortage components.
Quality Assurance & Compliance
Jasin Chip guarantees that all delivered products are 100% original factory stock
with full quality assurance and traceability.
-
100% Original & Authentic: All components are guaranteed to
be authentic with strict quality control.
-
RoHS Compliant: All electronic components comply with international
environmental and safety standards.
-
Original Factory Packaging: We maintain original factory packaging
and seals to ensure ESD protection and physical integrity.
產品概述
SN74LVC1G58DCKR 是德州儀器(TI)推出的一款單通道可配置多功能邏輯門,支持 1.65V 至 5.5V 的寬電源電壓範圍。通過三個輸入引腳的組合,該器件可實現多種邏輯功能(與門、或門、與非門、或非門、異或門、同或門、反相器、緩衝器)。採用緊湊的 SC-70-6 封裝,非常適合空間受限且需要靈活邏輯實現的應用。
詳細技術參數
| 參數 |
數值 |
| 電源電壓 (VCC) |
1.65 V 至 5.5 V |
| 輸入電壓 (VI) |
0 V 至 5.5 V |
| 輸出電壓 (VO) |
0 V 至 VCC |
| 高電平輸入電壓 (VIH) |
1.65V-2.7V 時最小值 0.65×VCC;2.7V-3.6V 時最小值 1.7V;3.6V-5.5V 時最小值 0.7×VCC |
| 低電平輸入電壓 (VIL) |
1.65V-2.7V 時最大值 0.35×VCC;2.7V-3.6V 時最大值 0.7V;3.6V-5.5V 時最大值 0.3×VCC |
| 高電平輸出電流 (IOH) |
3V 時 -24 mA;4.5V 時 -32 mA |
| 低電平輸出電流 (IOL) |
3V 時 24 mA;4.5V 時 32 mA |
| 傳播延遲 (tpd) |
3.3V、15 pF 負載下典型值 5 ns |
| 輸入電容 (Ci) |
典型值 3 pF |
| 工作溫度 |
-40°C 至 +125°C |
| 封裝 |
SC-70-6 |
核心特性
- 寬工作電壓範圍:1.65 V 至 5.5 V
- 可配置邏輯功能:與門、或門、與非門、或非門、異或門、同或門、反相器、緩衝器
- 高驅動能力:3 V 時 ±24 mA,4.5 V 時 ±32 mA
- 低傳播延遲:3.3 V 下典型值 5 ns
- 低功耗:最大 ICC 為 10 µA
- 輸入可承受高達 5.5 V 的電壓,與 VCC 無關
- ESD 保護超過 JESD 22 標準(2000-V HBM,1000-V CDM)
- 採用 SC-70-6 封裝(2 mm × 2.1 mm)
典型應用場景
- 5G 基站控制邏輯:用於基帶單元中的信號路由和功能選擇。
- 汽車儀表盤:用於指示燈控制和傳感器接口的可配置邏輯。
- 便攜式電子設備:需要低電壓邏輯靈活性的電池供電設備。
- 工業傳感器:多個傳感器輸出的邏輯功能選擇。
- 物聯網邊緣節點:用於協議橋接和信號調節的可配置門電路。
環球供應鏈與批發合作夥伴方案
在 Jasin Chip,我們為 SN74LVC1G58DCKR 提供全面的供應鏈與批發解決方案。
我們的核心優勢包括:
-
全天候環球客戶支援:專業團隊為您提供即時報價及技術支援,無需漫長等待。
-
現貨庫存,即日發貨:確保現貨充足。下午 4 點前確認訂單,即可安排當天寄出。
-
深港聯動,結算靈活:深圳直發全球,物流高效可靠;支援香港銀行戶口轉賬及多幣種結算。
-
Escrow 擔保交易:支援 Escrow.com 平台交易,保障買賣雙方權益,小批量訂單亦可安心在線下單。
-
BOM 配單與樣板服務:提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。
品質保證與合規
Jasin Chip 承諾所有出貨產品均為原廠正貨,具備完善的品質保證及產品可追溯性。
-
100% 原廠正貨:承諾所有供應零件均為原裝現貨,品質嚴格把關,來源清晰可追溯。
-
符合 RoHS 認證:所有電子元器件均符合國際環保標準及相關安全認證。
-
原廠封裝保護:嚴格保留原廠原始包裝及封條,確保物流過程中的靜電防護 (ESD) 與物理安全。
以上產品均為原廠正貨,提供 BOM 配單及現貨庫存支援,歡迎查詢。
