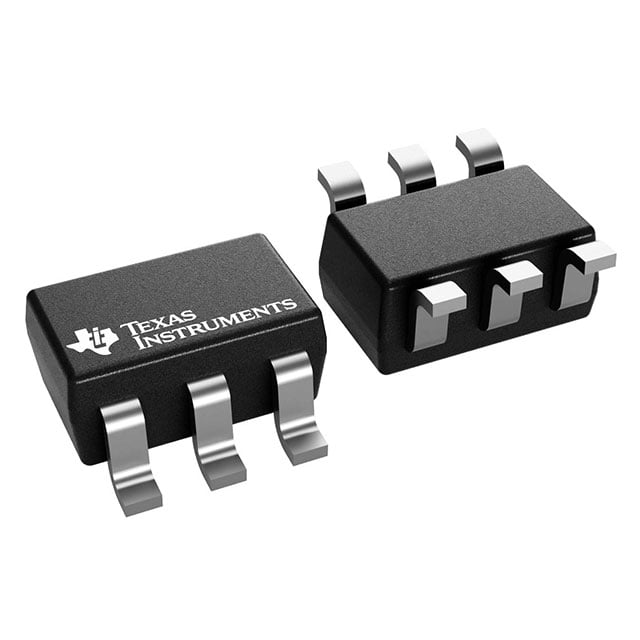

SN74LVC1T45DCKRG4 TI Voltage Level Translator | SC-70-6 | 1.65-5.5V, 1ch

Product Overview

The SN74LVC1T45DCKRG4 is a single-bit, dual-supply, non-inverting voltage level translator from Texas Instruments. It is designed for asynchronous communication between two voltage nodes, supporting VCCA from 1.65V to 5.5V and VCCB from 1.65V to 5.5V. The device features a direction control pin (DIR) that determines the data flow from A to B or B to A. It is housed in a compact SC-70-6 package, making it ideal for space-constrained applications.

Detailed Technical Specifications

Key Features

• Bidirectional voltage level translation with direction control
• Wide supply voltage range: 1.65V to 5.5V on both ports
• High data rate: up to 420 Mbps
• Low power consumption: 1 µA quiescent current
• ESD protection exceeds JESD 22
• Small SC-70-6 package for space-saving designs
• Supports partial power-down mode (Ioff)

Target Applications

• 5G base station control interfaces (e.g., translating between 1.8V and 3.3V logic)
• Automotive dashboard displays (e.g., connecting MCU to display driver)
• Industrial sensor interfaces (e.g., translating 3.3V sensor output to 5V PLC input)
• Portable electronics (e.g., battery-powered devices with mixed voltage domains)
• IoT modules (e.g., translating between 1.8V MCU and 3.3V radio)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN74LVC1T45DCKRG4. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
