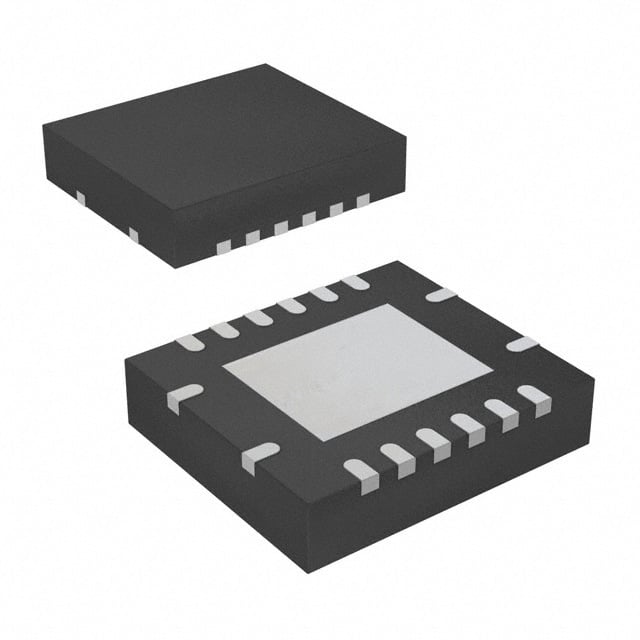

SN74LVC257ARGYR TI Multiplexer | 16-VQFN (4x3.5) | 4-Channel, 2-Input, 3.3V

Product Overview

The SN74LVC257ARGYR is a high-performance, 4-channel, 2-input multiplexer from Texas Instruments, designed for 3.3V logic systems. It features four independent multiplexers, each with two data inputs (A and B) and a common output (Y). The device operates from 1.65V to 3.6V, making it suitable for low-voltage applications. Housed in a compact 16-VQFN (4x3.5mm) package, it offers excellent signal integrity and reduced board space.

Detailed Technical Specifications

Key Features

• Wide supply voltage range: 1.65V to 3.6V
• 5.5V tolerant inputs
• High drive capability: ±24 mA at 3.3V
• Low propagation delay: 3.8 ns typical
• Low power consumption: 10 µA max ICC
• ESD protection: 2 kV HBM
• Available in space-saving VQFN package

Target Applications

The SN74LVC257ARGYR is ideal for a variety of applications including:

• 5G base stations: signal routing and data selection
• Automotive dashboard displays: multiplexing sensor inputs
• Industrial automation: PLC I/O module signal selection
• Consumer electronics: portable device interface switching
• Networking equipment: data path selection in routers

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN74LVC257ARGYR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

SN74LVC257ARGYR 是德州儀器推出的一款高性能4通道2輸入多路復用器，專為3.3V邏輯系統設計。該器件包含四個獨立的多路復用器，每個具有兩個數據輸入（A和B）和一個公共輸出（Y）。工作電壓範圍為1.65V至3.6V，適用於低電壓應用。採用緊湊的16-VQFN（4x3.5mm）封裝，提供優異的信號完整性和更小的電路板空間。

詳細技術參數

核心特性

• 寬電源電壓範圍：1.65V 至 3.6V
• 5.5V 容限輸入
• 高驅動能力：±24 mA（3.3V）
• 低傳播延遲：典型值 3.8 ns
• 低功耗：最大 ICC 10 µA
• ESD 保護：2 kV HBM
• 採用節省空間的 VQFN 封裝

典型應用場景

SN74LVC257ARGYR 適用於多種應用，包括：

• 5G 基站：信號路由和數據選擇
• 汽車儀表盤顯示：多路傳感器輸入選擇
• 工業自動化：PLC I/O 模塊信號選擇
• 消費電子：便攜設備接口切換
• 網絡設備：路由器數據路徑選擇

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 SN74LVC257ARGYR 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
