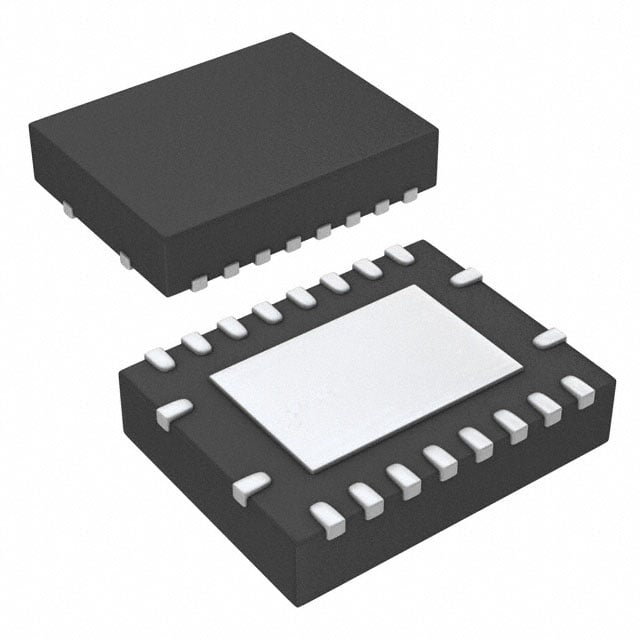

SN74LVC574ARGYR TI Flip-Flop | 20-VQFN (3.5x4.5) | 3.3V, 8-bit, D-Type

Product Overview

The SN74LVC574ARGYR from Texas Instruments is a high-performance, 8-bit D-type flip-flop with 3-state outputs. It operates from 1.65V to 3.6V, making it ideal for low-voltage applications. The device features edge-triggered operation with a clock enable (CLKEN) and an output enable (OE) for bus-oriented applications. Housed in a compact 20-VQFN (3.5x4.5mm) package, it offers excellent signal integrity and thermal performance.

Detailed Technical Specifications

Key Features

• Wide supply voltage range: 1.65V to 3.6V
• 5.5V tolerant inputs for mixed-voltage systems
• 3-state outputs for bus-oriented applications
• Edge-triggered D-type flip-flop with clock enable
• High drive capability: ±24mA at 3.3V
• Low power consumption: 10μA max ICC
• ESD protection: 2kV HBM, 1kV CDM
• RoHS compliant and lead-free

Target Applications

The SN74LVC574ARGYR is suitable for a wide range of applications, including:

• 5G base stations: Used in control logic for beamforming and signal processing modules.
• Automotive dashboard: For data latching in display controllers and instrument clusters.
• Industrial automation: In PLCs and motor control interfaces for data synchronization.
• Networking equipment: In routers and switches for register storage and data buffering.
• Consumer electronics: In smart home devices and IoT gateways for low-power data handling.

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN74LVC574ARGYR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

SN74LVC574ARGYR 是德州儀器（TI）推出的一款高性能8位D型觸發器，具有三態輸出。它支持1.65V至3.6V的寬電源電壓範圍，非常適合低電壓應用。該器件具有邊沿觸發操作，並帶有時鐘使能（CLKEN）和輸出使能（OE），適用於總線導向應用。採用緊湊的20-VQFN（3.5x4.5mm）封裝，提供優異的信號完整性和熱性能。

詳細技術參數

核心特性

• 寬電源電壓範圍：1.65V 至 3.6V
• 5.5V 容限輸入，適用於混合電壓系統
• 三態輸出，適用於總線導向應用
• 邊沿觸發 D 型觸發器，帶有時鐘使能
• 高驅動能力：在3.3V時為±24mA
• 低功耗：最大 ICC 為10μA
• ESD 保護：2kV HBM，1kV CDM
• 符合 RoHS 標準且無鉛

典型應用場景

SN74LVC574ARGYR 適用於多種應用，包括：

• 5G 基站：用於波束成形和信號處理模塊的控制邏輯。
• 汽車儀表板：用於顯示控制器和儀表組的數據鎖存。
• 工業自動化：在 PLC 和電機控制接口中用於數據同步。
• 網絡設備：在路由器和交換機中用於寄存器存儲和數據緩衝。
• 消費電子：在智能家居設備和物聯網網關中用於低功耗數據處理。

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 SN74LVC574ARGYR 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
