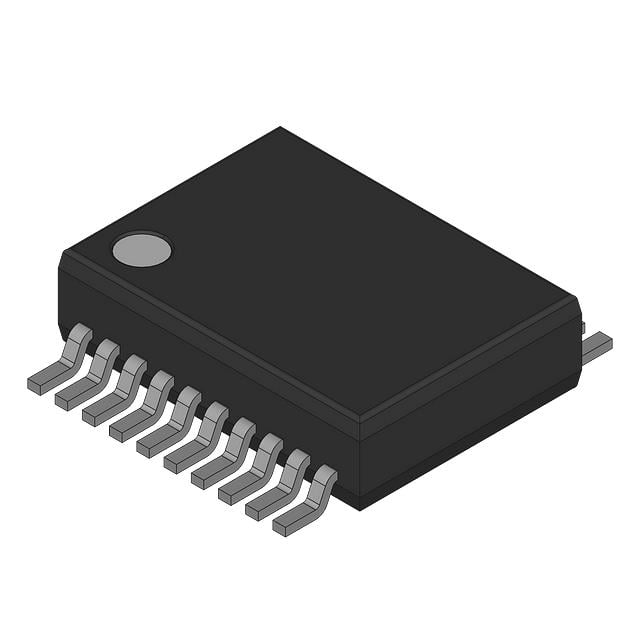

SN74LVC574DBLE TI Flip-Flop | 8-bit D-Type, 3-State, 1.65-3.6V

QUOTE REQ
×

WECHAT SUPPORT

Direct Engineer Contact

WeChat QR

ID: Jasin_Semi

HK/SZ Authorized Supply

×

ENTERPRISE QQ

Fast Quotation

QQ QR

Official ID: 4008823823

×

TELEGRAM SUPPORT

Global & CIS Region Support

Telegram QR

@你的Telegram用户名

STM32F103C8T6NE555PLM358DRESP32-WROOM-32TL431AIDBZRAMS1117-3.3LM7805MAX3232CSEPC817CTPS5430DDAR STM32F103C8T6NE555PLM358DRESP32-WROOM-32TL431AIDBZRAMS1117-3.3LM7805MAX3232CSEPC817CTPS5430DDAR
1N40072N2222IRFZ44NFGA25N120S8050M7(1N4007)SS14TIP122AO3400IKW40N120H3 1N40072N2222IRFZ44NFGA25N120S8050M7(1N4007)SS14TIP122AO3400IKW40N120H3
ATMEGA328P-AUESP8266-12ELM2596S-ADJBC547BIRLZ44NMCP2515-I/STSN65HVD230AD8232L293DTDA7297 ATMEGA328P-AUESP8266-12ELM2596S-ADJBC547BIRLZ44NMCP2515-I/STSN65HVD230AD8232L293DTDA7297
产品描述
🧪 SAMPLE SUPPORT ✅ 100% Original & Traceable 🚀 Inquiry Today, Ship Today 🛡️ Escrow.com Secured Payment

Product Overview

The SN74LVC574DBLE from Texas Instruments is an 8-bit edge-triggered D-type flip-flop with 3-state outputs. It operates over a wide voltage range of 1.65V to 3.6V, making it suitable for low-voltage applications. The device features a clock (CLK) and output enable (OE) input, with data (D) inputs that are loaded into the flip-flops on the rising edge of CLK. When OE is low, the outputs (Q) reflect the stored data; when OE is high, the outputs are in a high-impedance state. The SN74LVC574DBLE is designed for high-speed, low-power operation and is ideal for use in bus-oriented systems.

Detailed Technical Specifications

Parameter Value
Supply Voltage (VCC) 1.65V to 3.6V
Input Voltage (VI) 0V to 5.5V
Output Voltage (VO) 0V to VCC
High-Level Input Voltage (VIH) 0.65 × VCC (min) at VCC = 1.65V to 2.7V; 1.7V (min) at VCC = 2.7V to 3.6V
Low-Level Input Voltage (VIL) 0.35 × VCC (max) at VCC = 1.65V to 2.7V; 0.7V (max) at VCC = 2.7V to 3.6V
High-Level Output Current (IOH) -24mA at VCC = 3V
Low-Level Output Current (IOL) 24mA at VCC = 3V
Propagation Delay (tpd) 4.3ns (typ) at VCC = 3.3V, CL = 50pF
Input Capacitance (CI) 4pF (typ)
Operating Temperature Range -40°C to +85°C

Key Features

  • Wide operating voltage range: 1.65V to 3.6V
  • 5.5V tolerant inputs for mixed-voltage systems
  • 3-state outputs for bus-oriented applications
  • Edge-triggered D-type flip-flops with data retention
  • High drive capability: ±24mA at 3V
  • Low power consumption: 10μA max ICC
  • ESD protection exceeds JESD 22 (2000V HBM, 1000V CDM)
  • Available in SSOP package (DBLE)

Target Applications

  • 5G base station control logic
  • Automotive dashboard display modules
  • Industrial automation PLCs
  • Data communication routers and switches
  • Portable battery-powered devices

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN74LVC574DBLE. Our core advantages include:

  • 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
  • In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
  • HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
  • Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
  • BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

  • 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
  • RoHS Compliant: All electronic components comply with international environmental and safety standards.
  • Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

SN74LVC574DBLE 是德州儀器(TI)的一款8位邊沿觸發D型觸發器,帶三態輸出。它支持1.65V至3.6V的寬電壓範圍,適用於低電壓應用。器件具有時鐘(CLK)和輸出使能(OE)輸入,數據(D)輸入在CLK上升沿被載入觸發器。當OE為低電平時,輸出(Q)反映存儲的數據;當OE為高電平時,輸出處於高阻抗狀態。SN74LVC574DBLE 專為高速、低功耗設計,非常適合用於總線系統。

詳細技術參數

參數 數值
電源電壓 (VCC) 1.65V 至 3.6V
輸入電壓 (VI) 0V 至 5.5V
輸出電壓 (VO) 0V 至 VCC
高電平輸入電壓 (VIH) VCC=1.65V~2.7V時:0.65×VCC(最小值);VCC=2.7V~3.6V時:1.7V(最小值)
低電平輸入電壓 (VIL) VCC=1.65V~2.7V時:0.35×VCC(最大值);VCC=2.7V~3.6V時:0.7V(最大值)
高電平輸出電流 (IOH) VCC=3V時:-24mA
低電平輸出電流 (IOL) VCC=3V時:24mA
傳播延遲 (tpd) VCC=3.3V, CL=50pF時:典型值4.3ns
輸入電容 (CI) 典型值4pF
工作溫度範圍 -40°C 至 +85°C

核心特性

  • 寬工作電壓範圍:1.65V 至 3.6V
  • 5.5V 容限輸入,適用於混合電壓系統
  • 三態輸出,適用於總線應用
  • 邊沿觸發D型觸發器,數據保持
  • 高驅動能力:3V時±24mA
  • 低功耗:最大ICC 10μA
  • ESD保護超過JESD 22標準(2000V HBM,1000V CDM)
  • 封裝:SSOP (DBLE)

典型應用場景

  • 5G基站控制邏輯
  • 汽車儀表盤顯示模塊
  • 工業自動化PLC
  • 數據通信路由器與交換機
  • 便攜式電池供電設備

環球供應鏈與批發合作夥伴方案

在 Jasin Chip,我們為 SN74LVC574DBLE 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括:

  • 全天候環球客戶支援:專業團隊為您提供即時報價及技術支援,無需漫長等待。
  • 現貨庫存,即日發貨:確保現貨充足。下午 4 點前確認訂單,即可安排當天寄出。
  • 深港聯動,結算靈活:深圳直發全球,物流高效可靠;支援香港銀行戶口轉賬及多幣種結算。
  • Escrow 擔保交易:支援 Escrow.com 平台交易,保障買賣雙方權益,小批量訂單亦可安心在線下單。
  • BOM 配單與樣板服務:提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨,具備完善的品質保證及產品可追溯性。

  • 100% 原廠正貨:承諾所有供應零件均為原裝現貨,品質嚴格把關,來源清晰可追溯。
  • 符合 RoHS 認證:所有電子元器件均符合國際環保標準及相關安全認證。
  • 原廠封裝保護:嚴格保留原廠原始包裝及封條,確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨,提供 BOM 配單及現貨庫存支援,歡迎查詢。
