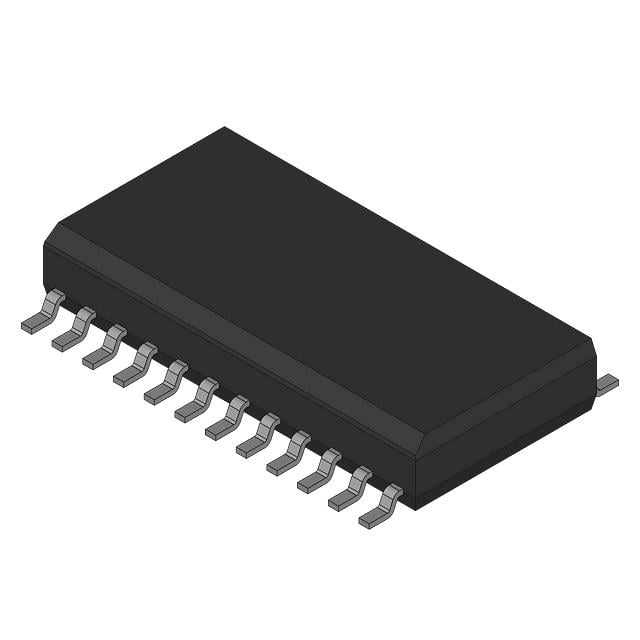

SN74LVC652DW TI Bus Transceiver | 3.3V, 8-Bit, Non-Inverting, SOIC-24

Product Overview

The SN74LVC652DW from Texas Instruments is a high-performance 8-bit bus transceiver with 3-state outputs, designed for asynchronous communication between data buses. It operates from 1.65V to 3.6V, making it ideal for low-voltage applications. The device features two 8-bit input/output ports (A and B) with direction control (DIR) and output enable (OE) pins. It is housed in a 24-pin SOIC package, offering a compact solution for bidirectional data flow.

Detailed Technical Specifications

Key Features

• Bidirectional 8-bit bus transceiver with 3-state outputs
• Wide supply voltage range: 1.65V to 3.6V
• 5V tolerant inputs for mixed-voltage systems
• Low power consumption: 10 µA max ICC
• High drive capability: ±24 mA at 3.3V
• Supports partial power-down mode (Ioff)
• ESD protection: 2 kV HBM, 1 kV CDM

Target Applications

• 5G base station control boards for data bus isolation
• Automotive dashboard display modules for signal buffering
• Industrial PLC I/O modules for level translation
• Consumer electronics like smart TVs for peripheral interface
• Networking equipment (routers/switches) for backplane communication

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN74LVC652DW. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
