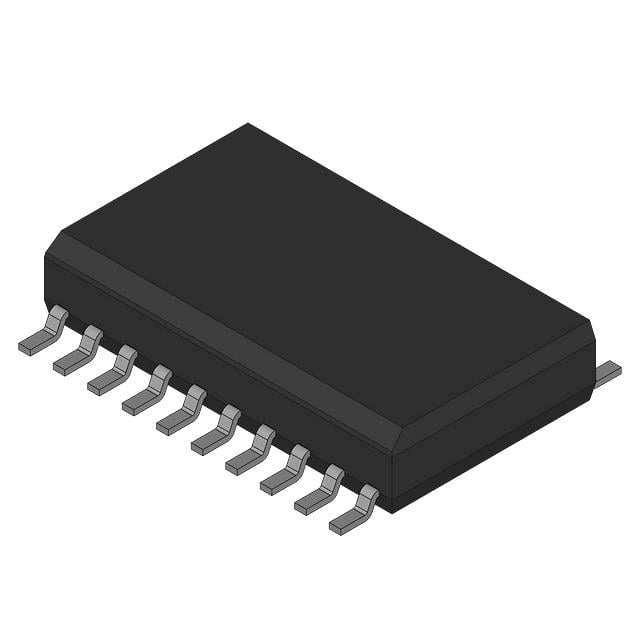

SN74LVCH245DW TI Bus Transceiver | 8-bit | 1.65V-3.6V, 24mA Drive

Product Overview

The SN74LVCH245DW is a high-performance 8-bit bus transceiver from Texas Instruments, designed for bidirectional asynchronous communication between two data buses. It operates over a wide voltage range of 1.65V to 3.6V, making it suitable for low-voltage applications. The device features non-inverting 3-state outputs and is part of the LVC family, known for low power consumption and high drive capability. Housed in a SOIC-20 package, it is ideal for space-constrained designs.

Detailed Technical Specifications

Key Features

• Bidirectional bus transceiver with 8-bit width
• Wide operating voltage range: 1.65V to 3.6V
• 5V tolerant inputs for mixed-voltage systems
• High drive capability: ±24mA at 3V
• Low power consumption: typical ICC of 10µA
• Bus-hold circuitry eliminates need for external pull-up resistors
• ESD protection exceeds JESD 22 (2000V HBM)

Target Applications

• 5G base stations: data bus isolation between baseband and RF modules
• Automotive dashboard: communication between MCU and display driver
• Industrial automation: PLC I/O module interface
• Consumer electronics: smartphone peripheral bus bridging
• Networking equipment: router backplane data transfer
