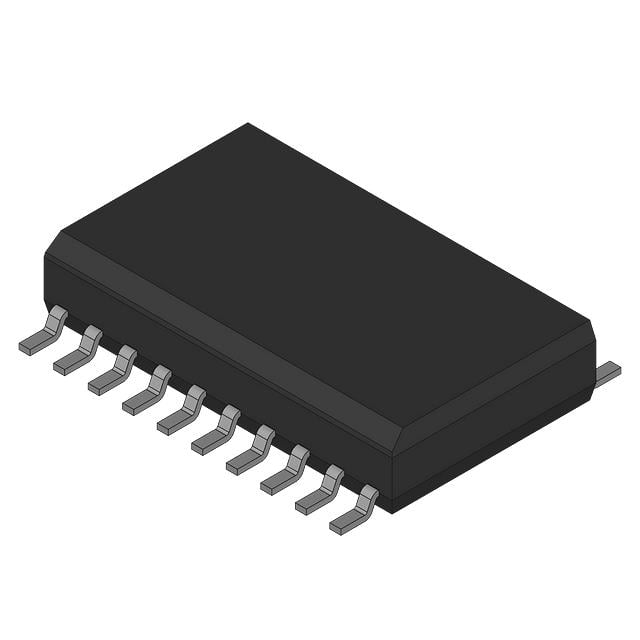

SN74LVCH245DWR TI Bus Transceiver | 3.3V | 8-bit, Non-Inverting

Product Overview

The SN74LVCH245DWR from Texas Instruments is a high-performance 8-bit bus transceiver designed for 3.3-V VCC operation. It features non-inverting 3-state outputs and is part of the LVC family, offering low voltage and high speed. The device is ideal for bidirectional asynchronous communication between two data buses, with direction control via the DIR input and output enable via the OE input. The SN74LVCH245DWR is available in a SOIC-20 package, providing a compact solution for space-constrained applications.

Detailed Technical Specifications

Key Features

• Operates from 1.65 V to 3.6 V, compatible with low-voltage systems
• 5.5-V tolerant inputs for mixed-voltage environments
• Non-inverting 3-state outputs for bus isolation
• High drive capability: ±24 mA at 3.3 V
• Low propagation delay: 4.5 ns max at 3.3 V
• Supports partial power-down mode (Ioff) to prevent backflow current
• ESD protection exceeds JESD 22 (2000-V HBM, 1000-V CDM)

Target Applications

• 5G base stations: Data bus isolation between baseband and RF modules
• Automotive dashboard: Communication between microcontroller and display driver
• Industrial automation: PLC I/O modules for signal buffering
• Networking equipment: Router and switch backplane interfaces
• Consumer electronics: Smart home hubs for sensor data transfer

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN74LVCH245DWR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
