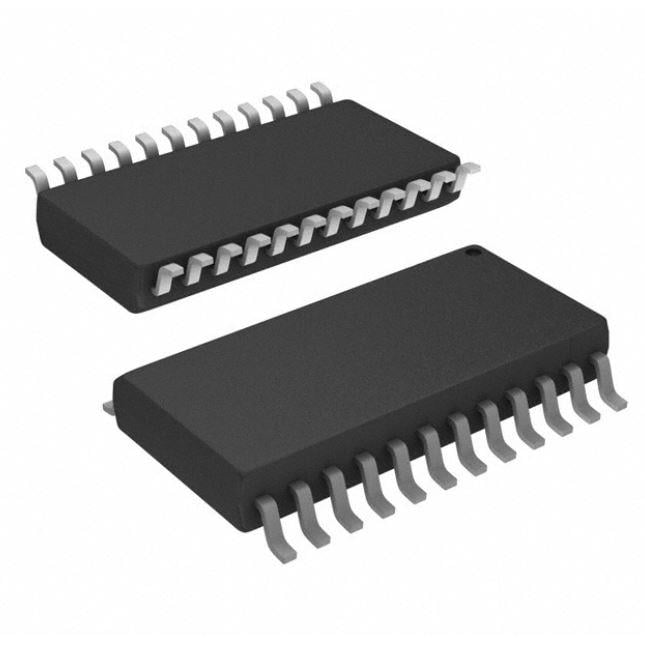

SN74LVCH8T245NSR TI Bus Transceiver | 24-SO | 8-bit, Dual Supply, Voltage Level Translation

Product Overview

The SN74LVCH8T245NSR is a high-performance 8-bit bus transceiver from Texas Instruments, designed for voltage level translation in mixed-voltage systems. It operates with dual supply voltages (VCCA and VCCB) ranging from 1.65V to 5.5V, enabling seamless communication between different voltage domains. The device features non-inverting data paths, direction control (DIR), and output enable (OE) for flexible bus management. Housed in a 24-pin SO package, it is ideal for space-constrained applications requiring bidirectional data flow.

Detailed Technical Specifications

Key Features

• Dual-supply voltage translation: 1.65V to 5.5V on both ports
• 8-bit bidirectional bus transceiver with non-inverting outputs
• Direction control (DIR) and output enable (OE) for bus isolation
• High data rate up to 420 Mbps
• Low propagation delay (3.5 ns typical)
• Partial power-down mode (Ioff) prevents backflow current
• ESD protection exceeds JESD 22 standards
• Available in 24-SO package for compact designs

Target Applications

The SN74LVCH8T245NSR is suitable for a wide range of applications requiring voltage level translation, including:

• 5G base stations: Interface between 1.8V baseband processors and 3.3V RF front-end modules
• Automotive dashboards: Connect 3.3V microcontrollers to 5V display drivers
• Industrial automation: Bridge 1.8V sensors with 3.3V PLCs
• Consumer electronics: Level shift between 1.8V memory and 3.3V application processors
• Networking equipment: Translate signals between 2.5V and 3.3V logic in switches

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN74LVCH8T245NSR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

SN74LVCH8T245NSR 是德州儀器（TI）推出的一款高性能8位總線收發器，專為混合電壓系統中的電平轉換設計。它支持雙電源供電（VCCA 和 VCCB），電壓範圍為 1.65V 至 5.5V，可實現不同電壓域之間的無縫通信。器件具有同相數據路徑、方向控制（DIR）和輸出使能（OE），便於靈活的總線管理。採用 24 引腳 SO 封裝，適合需要雙向數據傳輸的緊湊型應用。

詳細技術參數

核心特性

• 雙電源電平轉換：兩個端口均支持 1.65V 至 5.5V
• 8位雙向總線收發器，同相輸出
• 方向控制（DIR）和輸出使能（OE）實現總線隔離
• 高數據速率，最高 420 Mbps
• 低傳播延遲（典型值 3.5 ns）
• 部分斷電模式（Ioff）防止反向電流
• ESD 保護超過 JESD 22 標準
• 採用 24-SO 封裝，適合緊湊設計

典型應用場景

SN74LVCH8T245NSR 適用於需要電平轉換的多種應用，包括：

• 5G 基站：1.8V 基帶處理器與 3.3V 射頻前端模塊之間的接口
• 汽車儀表盤：3.3V 微控制器與 5V 顯示驅動器連接
• 工業自動化：1.8V 傳感器與 3.3V PLC 橋接
• 消費電子：1.8V 內存與 3.3V 應用處理器之間電平轉換
• 網絡設備：交換機中 2.5V 與 3.3V 邏輯信號轉換

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 SN74LVCH8T245NSR 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
