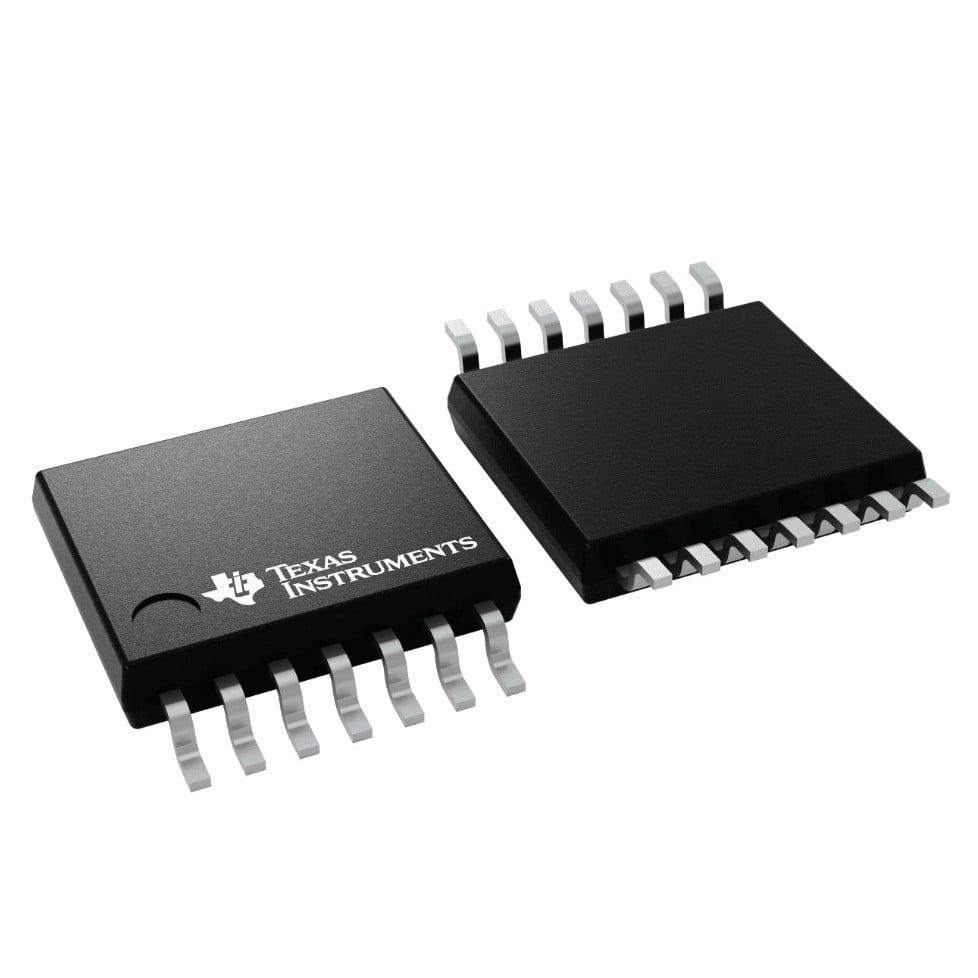

SN74LVCU04APWR TI Inverter | 14-TSSOP | 1.65V-5.5V, 24mA

QUOTE REQ
×

WECHAT SUPPORT

Direct Engineer Contact

WeChat QR

ID: Jasin_Semi

HK/SZ Authorized Supply

×

ENTERPRISE QQ

Fast Quotation

QQ QR

Official ID: 4008823823

×

TELEGRAM SUPPORT

Global & CIS Region Support

Telegram QR

@你的Telegram用户名

STM32F103C8T6NE555PLM358DRESP32-WROOM-32TL431AIDBZRAMS1117-3.3LM7805MAX3232CSEPC817CTPS5430DDAR STM32F103C8T6NE555PLM358DRESP32-WROOM-32TL431AIDBZRAMS1117-3.3LM7805MAX3232CSEPC817CTPS5430DDAR
1N40072N2222IRFZ44NFGA25N120S8050M7(1N4007)SS14TIP122AO3400IKW40N120H3 1N40072N2222IRFZ44NFGA25N120S8050M7(1N4007)SS14TIP122AO3400IKW40N120H3
ATMEGA328P-AUESP8266-12ELM2596S-ADJBC547BIRLZ44NMCP2515-I/STSN65HVD230AD8232L293DTDA7297 ATMEGA328P-AUESP8266-12ELM2596S-ADJBC547BIRLZ44NMCP2515-I/STSN65HVD230AD8232L293DTDA7297
产品描述
🧪 SAMPLE SUPPORT ✅ 100% Original & Traceable 🚀 Inquiry Today, Ship Today 🛡️ Escrow.com Secured Payment

Product Overview

The SN74LVCU04APWR from Texas Instruments is a hex inverter with un-buffered outputs, designed for 1.65-V to 5.5-V VCC operation. This device provides six independent inverter gates with a wide supply voltage range, making it suitable for a variety of logic-level translation and signal inversion applications. The un-buffered outputs allow for external feedback or oscillation circuits. Housed in a 14-pin TSSOP package, it offers a compact solution for space-constrained designs.

Detailed Technical Specifications

Parameter Value
Supply Voltage (VCC) 1.65 V to 5.5 V
Input Voltage (VI) 0 V to 5.5 V
Output Voltage (VO) 0 V to VCC
High-Level Output Current (IOH) -24 mA
Low-Level Output Current (IOL) 24 mA
Propagation Delay (tpd) 3.7 ns typical at 3.3 V
Input Capacitance (CI) 3 pF typical
Operating Temperature Range -40°C to +125°C
Package 14-TSSOP

Key Features

  • Wide operating voltage range: 1.65 V to 5.5 V
  • Un-buffered outputs for oscillator and feedback circuits
  • High drive capability: ±24 mA at 3.3 V
  • Low power consumption: 10 µA max ICC
  • Inputs accept voltages up to 5.5 V regardless of VCC
  • ESD protection exceeds JESD 22
  • Latch-up performance exceeds 100 mA per JESD 78, Class II

Target Applications

  • 5G Base Station: Signal inversion and level translation in control logic for power management and RF front-end modules.
  • Automotive Dashboard: Logic inversion for display control and sensor interface circuits.
  • Industrial Automation: PLC I/O modules for signal conditioning and isolation.
  • Consumer Electronics: Smart home hubs for sensor data inversion and interface.
  • Medical Devices: Portable diagnostic equipment for logic level conversion.

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN74LVCU04APWR. Our core advantages include:

  • 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
  • In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
  • HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
  • Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
  • BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

  • 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
  • RoHS Compliant: All electronic components comply with international environmental and safety standards.
  • Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

SN74LVCU04APWR 是德州儀器(TI)的一款六路反相器,具有非緩衝輸出,支持 1.65V 至 5.5V 的寬電源電壓範圍。該器件提供六個獨立的反相門,適用於邏輯電平轉換和信號反相應用。非緩衝輸出允許外部反饋或振盪電路。採用 14 引腳 TSSOP 封裝,為空間受限的設計提供緊湊解決方案。

詳細技術參數

參數 數值
電源電壓 (VCC) 1.65 V 至 5.5 V
輸入電壓 (VI) 0 V 至 5.5 V
輸出電壓 (VO) 0 V 至 VCC
高電平輸出電流 (IOH) -24 mA
低電平輸出電流 (IOL) 24 mA
傳播延遲 (tpd) 典型值 3.7 ns (3.3 V 時)
輸入電容 (CI) 典型值 3 pF
工作溫度範圍 -40°C 至 +125°C
封裝 14-TSSOP

核心特性

  • 寬工作電壓範圍:1.65 V 至 5.5 V
  • 非緩衝輸出,適用於振盪器和反饋電路
  • 高驅動能力:3.3 V 時 ±24 mA
  • 低功耗:最大 ICC 10 µA
  • 輸入電壓可達 5.5 V,與 VCC 無關
  • ESD 保護超過 JESD 22 標準
  • 閂鎖性能超過 100 mA,符合 JESD 78 Class II 標準

典型應用場景

  • 5G 基站:用於電源管理和射頻前端模塊的控制邏輯中的信號反相和電平轉換。
  • 汽車儀表盤:用於顯示控制和傳感器接口電路的邏輯反相。
  • 工業自動化:PLC I/O 模塊中的信號調理和隔離。
  • 消費電子:智能家居中樞的傳感器數據反相和接口。
  • 醫療設備:便攜式診斷設備中的邏輯電平轉換。

環球供應鏈與批發合作夥伴方案

在 Jasin Chip,我們為 SN74LVCU04APWR 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括:

  • 全天候環球客戶支援:專業團隊為您提供即時報價及技術支援,無需漫長等待。
  • 現貨庫存,即日發貨:確保現貨充足。下午 4 點前確認訂單,即可安排當天寄出。
  • 深港聯動,結算靈活:深圳直發全球,物流高效可靠;支援香港銀行戶口轉賬及多幣種結算。
  • Escrow 擔保交易:支援 Escrow.com 平台交易,保障買賣雙方權益,小批量訂單亦可安心在線下單。
  • BOM 配單與樣板服務:提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨,具備完善的品質保證及產品可追溯性。

  • 100% 原廠正貨:承諾所有供應零件均為原裝現貨,品質嚴格把關,來源清晰可追溯。
  • 符合 RoHS 認證:所有電子元器件均符合國際環保標準及相關安全認證。
  • 原廠封裝保護:嚴格保留原廠原始包裝及封條,確保物流過程中的靜電防護 (ESD) 與物理安全。
